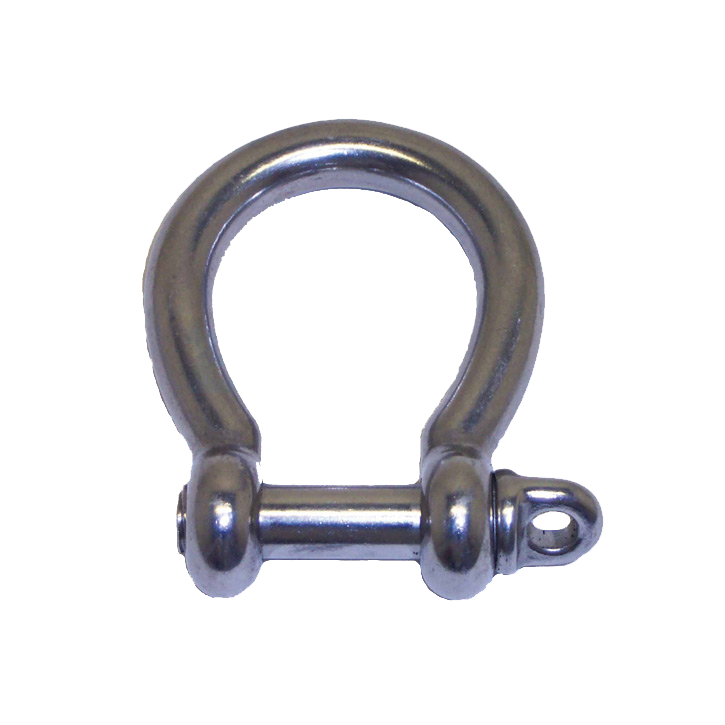

Stainless Steel Bow Shackles
Stainless Steel Bow Shackles.
Stainless Steel Dee Shackles.
Eye Nut DIN 582 are generally used as a removable lifting point where a rated nut can be utilised. Also can be used as a termination for chain, wire rope and other assemblies where required.
• Made from C15 carbon steel with zinc plated finish,manufactured with a standard larger eye. Only availablein metric thread sizes.
• Conforms to DIN 582, marked with working load limit in tonne, nominal size in millimetre, quality grade, batch numbered and supplier identification.
• Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
• Test certificates are available upon request.
|
|||||||
| CODE |
S(mm) |
B(mm) | D(mm) | W(mm) | L1(mm) | L2(mm) | B.L(kg) |
| SS-370F-03 | 2.9 | 6.3 | 7 | 9.1 | 13 | 19.3 | 400 |
| SS-370F-05 | 5 | 11 | 10 | 18 | 27 | 40 | 1200 |
| SS-370F-06 | 5.8 | 13.6 | 11.9 | 20.6 | 31 | 46 | 1700 |
| SS-370F-08 | 7.8 | 17.9 | 16 | 25.5 | 36.7 | 57 | 2500 |
| SS-370F-10 | 9.7 | 20.8 | 20 | 34.1 | 46.75 | 70.7 | 4300 |
| SS-370F-12 | 11.8 | 25.8 | 23.9 | 41.9 | 58.3 | 86.5 | 6200 |
| SS-370-16 | 15.6 | 31.8 | 31.9 | 56 | 74.8 | 115.5 | 10000 |
| SS-370-22 | 21.6 | 43.7 | 44 | 75 | 98 | 150 | 19000 |
