Eye Bolt DIN580 Zinc

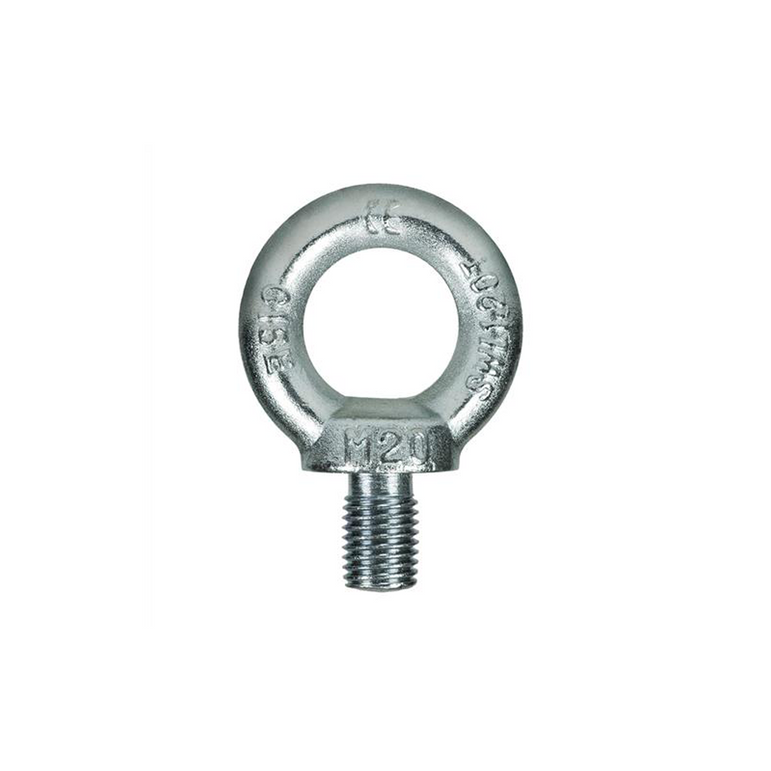

Eye bolts DIN580 are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for chain, wire rope and other assembles where required.
• Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
• Conforms to DIN580 and DIN582 marked with working load limit in tonne, nominal size in millimetre, quality grade, batch numbered and supplier identification.
• Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
• Test certificates are available upon request.
 |
|||||||||||
| SIZE(mm) | CODE | PITCH(mm) | WLL(T) | Wt.(kg) | DIMENSIONS(mm) | ||||||
| D | D1 | D2 | D3 | H | H1 | W | |||||
| *M6 | 601006 | 1.00 | 0.09 | 0.055 | 6 | 20 | 20 | 8 | 36 | 13 | 36 |
| M8 | 601008 | 1.25 | 0.14 | 0.06 | 8 | 20 | 20 | 8 | 36 | 13 | 36 |
| M10 | 601010 | 1.50 | 0.23 | 0.1 | 10 | 25 | 25 | 10 | 45 | 17 | 45 |
| M12 | 601012 | 1.75 | 0.34 | 0.19 | 12 | 30 | 30 | 12 | 53 | 20 | 54 |
| M16 | 601016 | 2.00 | 0.70 | 0.31 | 16 | 35 | 35 | 14 | 62 | 27 | 63 |
| M20 | 601020 | 2.50 | 1.20 | 0.45 | 20 | 40 | 40 | 16 | 71 | 30 | 72 |
| *M22 | 601022 | 2.50 | 1.50 | 0.68 | 22 | 40 | 40 | 16 | 71 | 30 | 72 |
| M24 | 601024 | 3.00 | 1.80 | 0.72 | 24 | 50 | 50 | 20 | 90 | 36 | 90 |
| *M27 | 601027 | 3.00 | 2.50 | 1.16 | 27 | 54 | 61.4 | 22 | 99 | 40 | 98 |
| M30 | 601030 | 3.50 | 3.60 | 1.6 | 30 | 60 | 65 | 24 | 109 | 45 | 108 |
| M36 | 601036 | 4.00 | 5.10 | 2.8 | 36 | 70 | 75 | 28 | 128 | 54 | 126 |
| M42 | 601042 | 4.50 | 7.00 | 4.2 | 42 | 80 | 85 | 32 | 147 | 63 | 144 |
| M48 | 601048 | 5.00 | 8.60 | 6.36 | 48 | 90 | 100 | 38 | 168 | 68 | 166 |
| M56 | 601056 | 5.50 | 11.5 | 8.9 | 56 | 100 | no | 42 | 187 | 78 | 184 |
| * Products marked are manufactured according to AUSTLIFT specifications | |||||||||||
| WORKING LOAD LIMIT FOR EYE BOLTS/NUTS(T) | ||||||
| SIZE | SINGLE EYE BOLT/NUTS | PAIR OF EYE BOLTS/NUTS | ||||
| AXIAL | SIDE 90° | VERTICAL PAIR | 30° ANGLE | 60° ANGLE | 90° ANGLE | |
 |
 |
 |
 |
 |
 |
|
| M6 | 0.09/0.07 | 0.018 | 0.035 | 0.088 | 0.056 | 0.035 |
| M8 | 0.14 | 0.035 | 0.07 | 0.176 | 0.112 | 0.07 |
| M10 | 0.23 | 0.058 | 0.115 | 0.29 | 0.184 | 0.115 |
| M12 | 0.34 | 0.085 | 0.17 | 0.428 | 0.272 | 0.17 |
| M16 | 0.70 | 0.175 | 0.35 | 0.882 | 0.56 | 0.35 |
| M20 | 1.20 | 0.3 | 0.6 | 1.512 | 0.96 | 0.6 |
| M22 | 1.50 | 0.375 | 0.75 | 1.89 | 1.2 | 0.75 |
| M24 | 1.80 | 0.45 | 0.9 | 2.268 | 1.44 | 0.9 |
| M27 | 2.50 | 0.625 | 1.25 | 3.15 | 2.0 | 1.25 |
| M30 | 3.60 | 0.9 | 1.8 | 4.536 | 2.88 | 1.8 |
| M36 | 5.10 | 1.275 | 2.55 | 6.426 | 4.08 | 2.55 |
| M42 | 7.00 | 1.75 | 3.5 | 8.82 | 5.6 | 3.5 |
| M48 | 8.60 | 2.15 | 4.3 | 10.836 | 6.88 | 4.3 |
| M56 | 11.50 | 2.875 | 5.75 | 14.49 | 9.2 | 5.75 |
