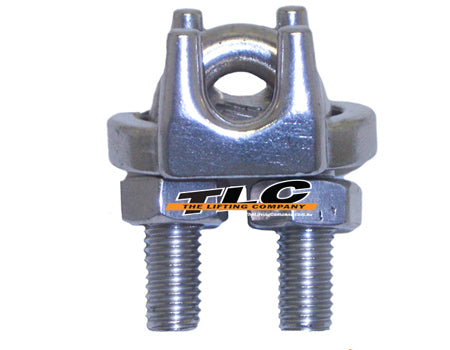

Wire Rope Grips (Stainless Steel)
Wire rope grips are a quick and simply way for anyone to create eyelets without the need for mechanical or hand swaging ferrules.
Eye Nut DIN 582 are generally used as a removable lifting point where a rated nut can be utilised. Also can be used as a termination for chain, wire rope and other assemblies where required.
• Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
• Conforms to DIN 582, marked with working load limit in tonne, nominal size in millimetre, quality grade, batch numbered and supplier identification.
• Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
• Test certificates are available upon request.
|
||||||||||
| CODE | ROPE SIZE | B | B1 | B2 | D1 | H1 | H2 | L1 | ||
| SS-260-02 | 2MM | 12 | 4 | 14 | 20 | 20 | 36 | |||
| SS-260-03 | 2MM | 14 | 5.5 | 16 | 20 | 20 | 36 | |||
| SS-260-03/HD | 3MM | 12 | 4 | 14 | 25 | 25 | 45 | |||
| SS-260-04 | 4MM | 16 | 6 | 18 | 30 | 30 | 53 | |||
| SS-260-05 | 5MM | 19 | 7 | 21 | 35 | 35 | 62 | |||
| SS-260-06 | 6MM | 22 | 9 | 22 | 40 | 40 | 71 | |||
| SS-260-08 | 8MM | 27 | 11 | 28 | 45 | 45 | 80.5 | |||
| SS-260-10 | 10MM | 32 | 12 | 35 | 50 | so | 90 | |||
| SS-260-12 | 12MM | 37 | 15 | 38 | so | 50 | 97 | |||
| SS-260-14 | 14MM | 40 | 18 | 44 | 65 | 65 | 109 | |||
| SS-260-16 | 16MM | 47 | 20 | 47 | 75 | 75 | 128 | |||
| SS-260-19 | 19MM | 51 | 22 | 53 | 85 | 85 | 147 | |||
| SS-260-25 | 25MM | 65 | 28 | 62 | 100 | 100 | 168 | |||
