CSB Crane Spreader Beams
| Product | Code |
|---|---|
| CSB 2×2 – 2T SWL | CSB2X2 |
| CSB 3×3 – 3T SWL | CSB3X3 |
| CSB 5×4 – 5T SWL | CSB5X4 |
| CSB 10×4 – 10T SWL | CSB10X4 |
| CSB 10×7 – 10T SWL | CSB10X7 |

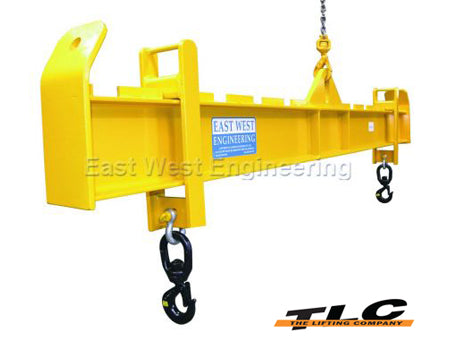

The type CSB Crane Spreader Beams are available ina range of capacities and lengths to suit anyapplication.
Crane Spreader Beams are supplied standard with 5lift positions and fitted with 2 safety swivel hooks.The standard finish on all Crane Spreader Beams ispainted enamel in ‘safety yellow’.

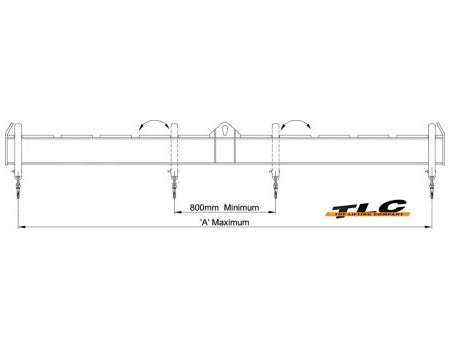

The chart below shows the standard range of CraneSpreader Beams available. Choose the rating (SafeWorking Load) and Beam length (Dimension ‘A’value shown on the diagram below) to suit yourapplication.
| Type |
SWL (Tonne) |
Weight (kg) |
“A” (Metres) |
| CSB 2×2 |
2.0 |
70 |
2.0 |
| CSB 3×3 |
3.0 |
110 |
3.0 |
| CSB 5×4 |
5.0 |
300 |
4.0 |
| CSB 10×4 |
10.0 |
480 |
4.0 |
| CSB 10×7 |
10.0 |
1350 |
7.0 |
