CFL2439 Crane / Forklift Spreader Beam – Light
| Product | Code |
|---|---|
| Crane / Forklift Spreader Beam | CFL2439 |

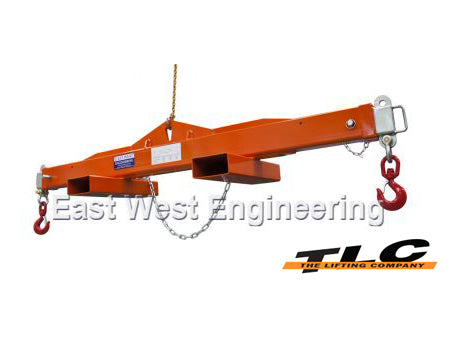

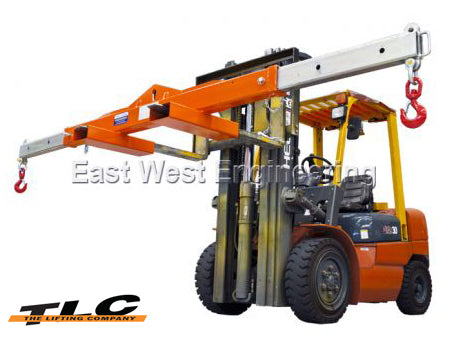

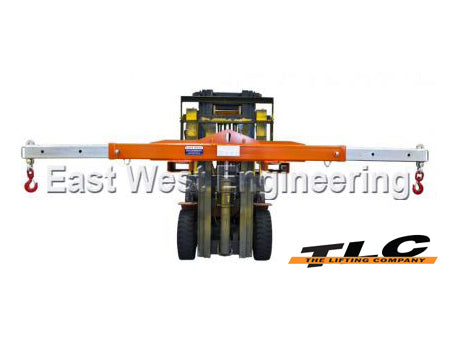

The type CFL-2439 Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a ‘Lifting Beam’), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck.
The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook each end.
The extendable arms are zinc plated with the main body painted in ‘safety orange’.
The unit is fully ‘Third Party’ certified to relevant Australian Standards – Certification Certificate supplied upon request.
SPECIFICATIONS:
- · Rated Capacity (RC Max.): 9000kg
- · Load Centre (LC): 2405mm
- · Unit Weight: 172kg
- · F/Lift HCG: 300mm
|
RATED CAPACITY (RC) WHEN USED AS |
FULLY RETRACTED |
MIDDLE POSITION |
FULLY EXTENDED |
| FORKLIFT ATTACHMENT |
3500KG |
1500KG |
750KG |
| LIFTING BEAM |
4500KG |
2500KG |
1300KG |
| SPREADER BEAM |
9000KG |
7200KG |
5600KG |
