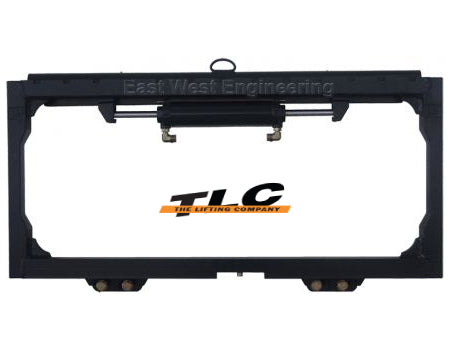

Hydraulic Sideshift
| Product | Code |
|---|---|
| Class 2 – 920 mm | CYQ25F-920 |
| Class 2 – 1020mm | CYQ25F-1020 |
| Class 2 – 1200mm | CYQ25F-1200 |
| Class 3 – 1070mm | CYQ35F-1070 |
| Class 3 – 1220mm | CYQ35F-1200 |
| Class 3 – 1200mm | CYQ45D-D001-1200 |
The CYQ Sideshift allows lateral movement of the load, enabling the forklift operator to place the load in the correct position without various movements of the forklift truck.
FEATURES:
• Enable forklift operator to move loads from side to side
• Adjustment of load provides greater flexibility for handling & stacking loads
• Equal sideshifting force
• Maximum residual capacity due to minimum weight and lost load
• Quick and simple installation – no welding required
• Excellent forklift operator visibility
SPECIFICATIONS:
|
Model |
Capacity @ Load Centre (kg@mm) |
Mounting Class |
Min. Truck |
Carriage Width (mm) |
Vertical Centre of Gravity (mm) |
Horizontal Centre of Gravity (mm) |
Lost Load (mm) |
Unit Weight (kg) |
|
CYQ25F-920 |
2500@600 |
II |
895 |
920 |
217 |
27 |
62 |
48 |
|
CYQ25F-1020 |
2500@600 |
II |
895 |
1020 |
217 |
27 |
62 |
52 |
|
CYQ25F-1200 |
2500@600 |
II |
1040 |
1200 |
217 |
27 |
62 |
58 |
|
CYQ35F-1070 |
3500@600 |
III |
935 |
1070 |
293 |
26 |
64 |
65 |
|
CYQ35F-1200 |
3500@600 |
III |
1040 |
1200 |
293 |
26 |
64 |
70 |
|
CYQ45D-C001-1200 |
4500@600 |
III |
1016 |
1200 |
293 |
40 |
73 |
168 |
Custom sizes and capacities available upon request
* Tines & Hoses not included. Please contact the Forklift manufacturer for the residual capacity of attachment.
