Standard Sideshift Fork Positioners
| Product | Code |
|---|---|
| Positioner Class 2 | TJC25D-B001-920 |
| Positioner Class 2 | TJC25D-B001-970 |
| Positioner Class 2 | TJC25D-B001-1020 |
| Positioner Class 2 | TJC25D-B001-1200 |
| Positioner Class 3 | TJC30D-C001-1100 |
| Positioner Class 3 | TJC30D-C001-1200 |
| Positioner Class 3 | TJC30D-C001-1000 |

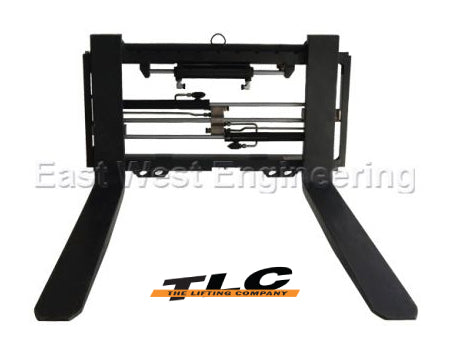

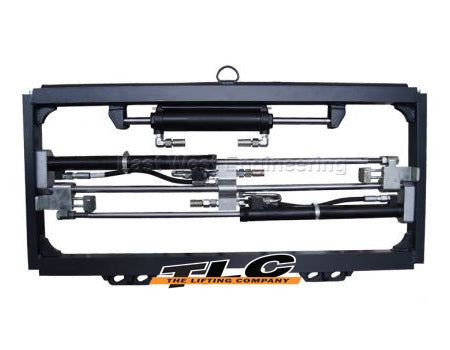

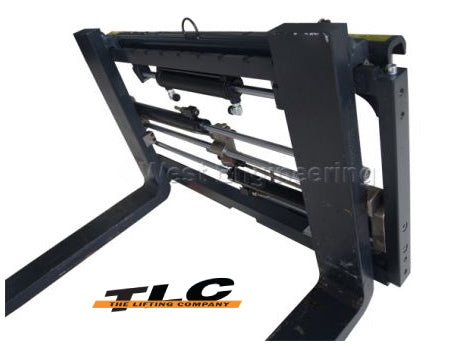

East West Engineering’s range of hydraulic fork positioners offer an efficient, practical solution to handling pallets of varying sizes, increasing operator productivity while reducing the risk of damage to loads.
East West Engineering can supply all sizes and capacities upon request.
|
Model |
Capacity @Load Centre |
Mounting Class |
Opening Range |
Carriage Width |
Fork Pocket Width |
Vertical Centre of Gravity |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
OTO (mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
TJC25D-B001-920 |
2500@600 |
II |
250-780 |
920 |
80-100 |
226 |
59 |
62 |
27 |
|
TJC25D-B001-970 |
2500@600 |
II |
250-830 |
970 |
80-100 |
226 |
60 |
62 |
27 |
|
TJC25D-B001-1020 |
2500@600 |
II |
250-880 |
1020 |
80-100 |
226 |
64 |
62 |
27 |
|
TJC25D-B001-1200 |
2500@600 |
II |
250-1060 |
1200 |
80-100 |
226 |
71 |
62 |
27 |
|
TJC30D-C001-1000 |
3000@600 |
III |
250-860 |
1000 |
100-130 |
293 |
76 |
64 |
29 |
|
TJC30D-C001-1100 |
3000@600 |
III |
250-960 |
1100 |
100-130 |
293 |
78 |
64 |
29 |
|
TJC30D-C001-1200 |
3000@600 |
III |
250-1060 |
1200 |
100-130 |
293 |
83 |
64 |
29 |
