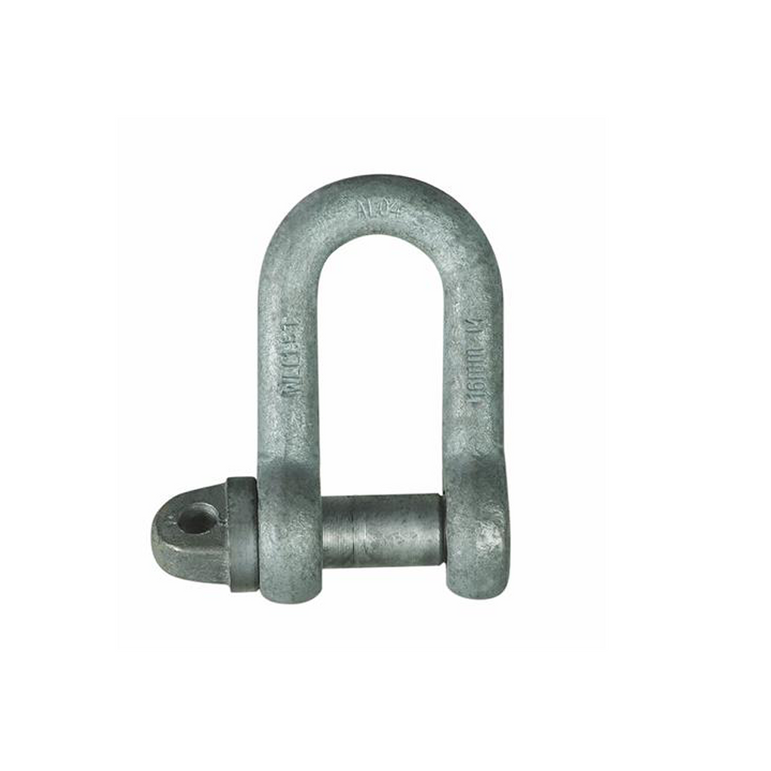

Shackle Grade M Dee Galvanised
Grade M dee shackles are used where larger dimensional shackles are required for specific applications. Also ideal for the marine, agricultural & general industrial uses.
• Grade M shackle is manufactured to comply in accordance with AS2741.
• Made from Grade 40 alloy steel, larger dee shape with screw pin, available in black or hot dipped galvanised finish.
• Suitable for lifting applications.
 |
|||||||
| SIZE(mm) | WLL(T) | Wt.(kg) | DIMENSIONS (mm) | ||||
| B | C | D | D1 | F | |||
| 6 | 0.25 | 0.062 | 13 | 25 | 6 | 10 | 19 |
| 10 | 0.5 | 0.164 | 19 | 38 | 10 | 13 | 25 |
| 13 | 0.75 | 0.353 | 28 | 54 | 13 | 16 | 32 |
| 16 | 1.5 | 0.66 | 32 | 63 | 16 | 19 | 38 |
| 19 | 2.0 | 1.13 | 38 | 73 | 19 | 22 | 44 |
| 22 | 3.0 | 1.53 | 44 | 83 | 22 | 25 | 51 |
| 25 | 3.8 | 2.16 | 51 | 95 | 25 | 29 | 57 |
| 29 | 5.0 | 3.07 | 54 | 105 | 29 | 32 | 63 |
| 32 | 6.0 | 4.2 | 60 | 114 | 32 | 35 | 70 |
| 35 | 7.0 | 5.83 | 67 | 127 | 35 | 38 | 76 |
| 38 | 9.5 | 7.8 | 70 | 137 | 38 | 44 | 89 |
| 45 | 13.0 | 13 | 83 | 156 | 44 | 51 | 102 |
| 51 | 16.0 | 30.2 | 98 | 187 | 51 | 57 | 114 |
