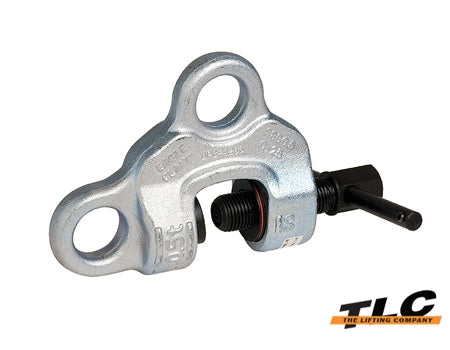

PWB SBBA – Multi Directional Clamp

Patented unique ‘torque confirmation device’ (visible red ring indicates when tightening force is achieved).
Suitable for most bisalloy steel.
For horizontal and vertical lifting applications.
Spring type pressure lock locking device.
Twin shackle allows movement in both directions.
Double safety feature with screw type vise and automatic clamping mechanism.
Main body forged special alloy steel with galvanised finish.
Clamp screw and swivel jaw made of alloy steel and induction hardened.
For steel plate with higher hardness range.
Tightening force must be minimum of 300kgf-cm.
Conforms to AS4991-2004.
