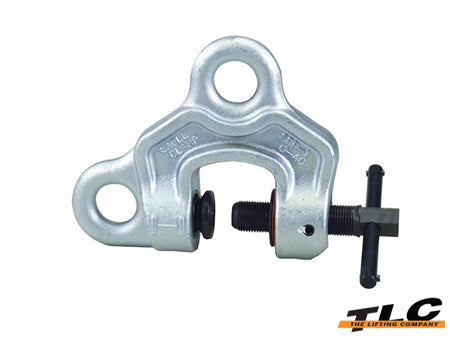

PWB SBB – Multi Directional Clamp

Patented unique ‘torque confirmation device’ (visible red ring indicates when tightening force is achieved).
For horizontal and vertical lifting applications.
Spring type pressure lock locking device.
Twin shackle allows movement in both directions.
Double safety feature with screw type vise and automatic
clamping mechanism.
Main body forged special alloy steel with galvanised finish.
Clamp screw and swivel jaw made of alloy steel and induction hardened.
Tightening force must be minimum of 150kgf-cm.
Conforms to AS4991-2004.
