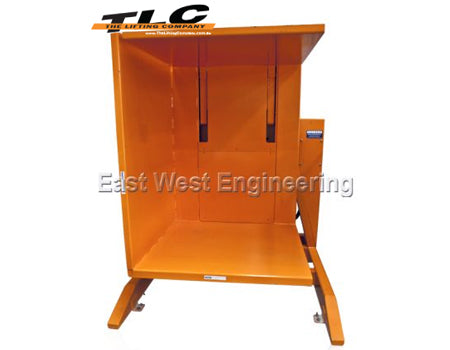

Pallet Inverter
| Product | Code |
|---|---|
| Pallet Inverter | TPQ20D-001 |

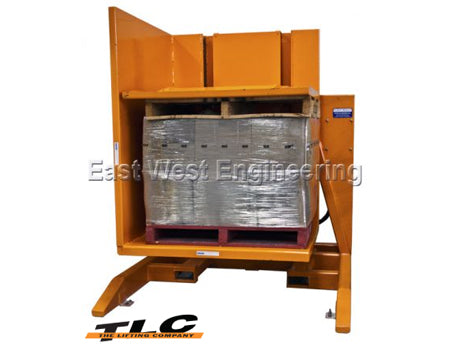

Designed for the safe and effortless rotation of pallet loads where exchange of pallets or inversion is required. The TPQ20D Pallet Inverter negates the time consuming process of manual unloading/loading along with its potential risk of injury and loss of productivity associated with manual handling.
APPLICATIONS:
- Ideal for food manufacturers or any ‘dust-sensitive’ application, allowing timber pallets to be swapped for ‘clean room’ compliant steel or plastic pallets used in processing area.
- Efficient means of extracting damaged goods from bottom of palletised stack.
- Allows quick and efficient exchange of goods from in-house pallets to export friendly pallet (or slip sheet) and vice versa.
- Easy method for straightening / squaring up palletised loads.
SPECIFICATIONS:
- Load Limit: 2000 KG
- Operating Range: 920MM – 1600MM
- Max Load Height: 1600MM
- Platform Size: 1300 W2 X 1300MM D2

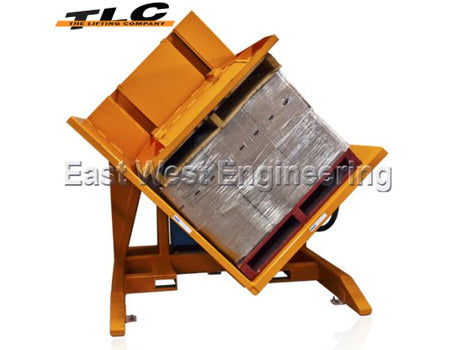

- Rotation: 180 Degrees

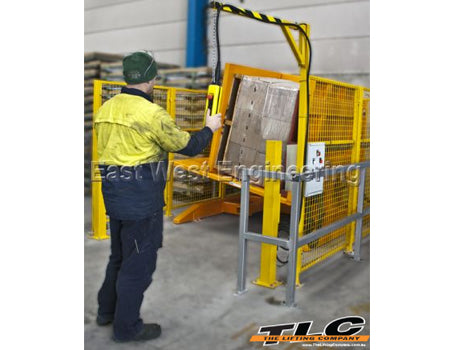

- Controls: Push Button Pendant, Semi-automatic
- System HYD. Pressure: 16MPA
- Rotation Time: 15 Seconds (Approx.)
- Clamp Time, Full Travel: 18 Seconds (Approx.)
- Power Supply: 3 Phase + Neutral / 415V / 20A
- Motor Size: 7.5KW
- Weight: 2700kg
- Size with safety screens: 4000 (L) X 2700 (W) X 2450mm (H)
- Shipping Size: 1900 (W) X 2300 (L) X 2250mm (H)
- Optional Safety Light Curtain: $2,000+GST
Contact East West Engineering for a detailed quotation specific to your requirements.
