M-Deluxe series
Boasting elegant sophistication, the M Deluxe castor will complement your high end furniture, display, or equipment. Based on the M Series castors, the M Deluxe is fitted with a 100 mm or 125 mm TPE wheel, precision bearings and thread guard. The chrome-plated forks are fitted with Chicago screw axles.
| Load rating: | 85 kg |
| Wheels: | Thermoplastic elastomer |
| Forks: | Chrome plated, in swivel plate, fixed plate, bolt hole and total brake configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
MJQ wheel
Max load: 85 kg
Material: Thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
Bluestone colourway
| Order code: | MJQ100GBN |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Bluestone colourway
| Order code: | MJQ125GBN |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Enquiry Now |
100 mm castors
Swivel plate
| Order code: | MJQ100G/MCPBN |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |

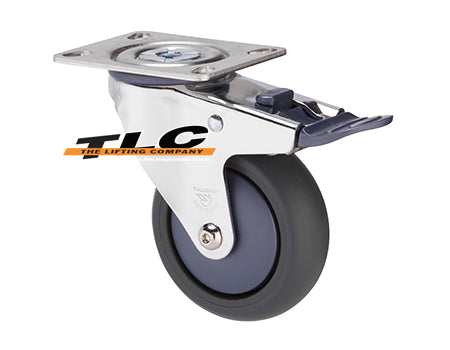

Swivel plate and total brake
| Order code: | MJQ100G/MCPTBBN |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Fixed plate
| Order code: | MJQ100G/MCFBN |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MJQ100G/MCHBN |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJQ100G/MCHTBBN |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | MJQ125G/MCPBN |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJQ125G/MCPTBBN |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Fixed plate
| Order code: | MJQ125G/MCFBN |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MJQ125G/MCHBN |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJQ125G/MCHTBBN |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
