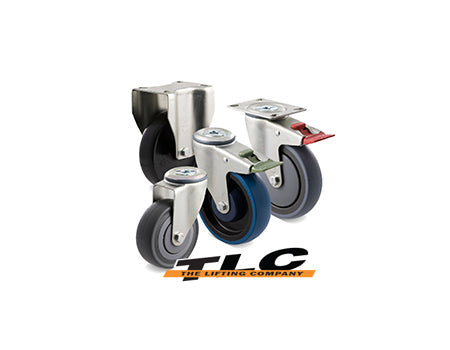

M Series
Able to carry up to 200 kg each, the versatile M Series castors are available in 75, 100 and 125 mm sizes, and in a wide range of wheel types.
| Load rating: | 85–200 kg |
| Wheels: | Blue or grey high resilience elastomer, thermoplastic elastomer, hard nylon, grey rubber, polyurethane |
| Forks: | Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
CBQ wheel
Max load: 85–100 kg
Material: Blue high resilience elastomer
Bearing: Precision ball bearing
Thread guard: Yes
| Order code: | CBQ75G |
| Diameter: | 75 mm |
| Tread: | 33 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | CBQ100G |
| Diameter: | 100 mm |
| Tread: | 33 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | CBQ125G |
| Diameter: | 125 mm |
| Tread: | 33 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | CBQ75G/MZP |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | CBQ75G/MZPTB |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | CBQ75G/MZPDL |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Fixed plate
| Order code: | CBQ75G/MZF |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | CBQ75G/MZH |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | CBQ75G/MZHTB |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | CBQ75G/MZHDL |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | CBQ100G/MZP |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | CBQ100G/MZPTB |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | CBQ100G/MZPDL |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Fixed plate
| Order code: | CBQ100G/MZF |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | CBQ100G/MZH |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | CBQ100G/MZHTB |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | CBQ100G/MZHDL |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | CBQ125G/MZP |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | CBQ125G/MZPTB |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | CBQ125G/MZPDL |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Fixed plate
| Order code: | CBQ125G/MZF |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | CBQ125G/MZH |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | CBQ125G/MZHTB |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | CBQ125G/MZHDL |
| Max load: | 100 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
