L Series

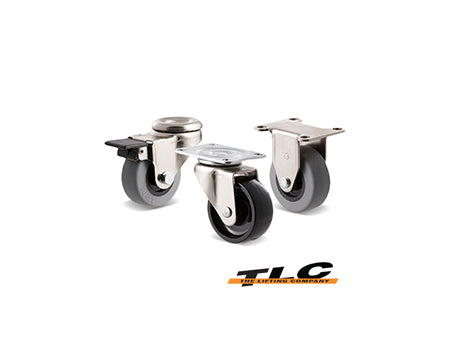

Available in thermoplastic elastomer (TPE) or hard nylon, these castors can carry up to 30 kg each and are suitable for light duty trolleys and carts that travel across hard floor surfaces.
| Load rating: | 30 kg |
| Wheels: | TPE (LJP) or hard nylon (LNN) |
| Forks: | Nickel finish in swivel plate, fixed plate, bolt hole and wheel brake configurations |
| Warranty: | Three years |
| Diameter x tread: | 50 mm x 20 mm |
| Hub x bore: | 25 mm x 6 mm |
| Bearing: | Plain |
| Thread guard: | No |
|
Mount dimensions: |
|
Castor options
LJP wheel
Max load: 30 kg
Material: Thermoplastic elastomer
Bearing: Plain bearing
Thread guard: No
| Order code: | LJP50 |
| Diameter: | 50 mm |
| Tread: | 20 mm |
| Hub: | 25 mm |
| Bore: | 6 mm |
| Enquiry Now | |
50 mm castors
Swivel plate
| Order code: | LJP50/LKP |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 47 mm |
| Enquiry Now | |
Swivel plate and wheel brake
| Order code: | LJP50/LKPBR |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 57 mm |
| Enquiry Now | |
Fixed plate
| Order code: | LJP50/LKF |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | LJP50/LKH |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 47 mm |
| Enquiry Now | |
Bolt hole and wheel brake
| Order code: | LJP50/LKHBR |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 57 mm |
| Enquiry Now | |
LJP wheel
Max load: 30 kg
Material: Thermoplastic elastomer
Bearing: Plain bearing
Thread guard: No
| Order code: | LJP50 |
| Diameter: | 50 mm |
| Tread: | 20 mm |
| Hub: | 25 mm |
| Bore: | 6 mm |
| Enquiry Now | |
50 mm castors
Swivel plate
| Order code: | LJP50/LKP |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 47 mm |
| Enquiry Now | |
Swivel plate and wheel brake
| Order code: | LJP50/LKPBR |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 57 mm |
| Enquiry Now | |
Fixed plate
| Order code: | LJP50/LKF |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | LJP50/LKH |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 47 mm |
| Enquiry Now | |
Bolt hole and wheel brake
| Order code: | LJP50/LKHBR |
| Max load: | 30 kg |
| Mount height: | 65 mm |
| Turning radius: | 57 mm |
| Enquiry Now | |
