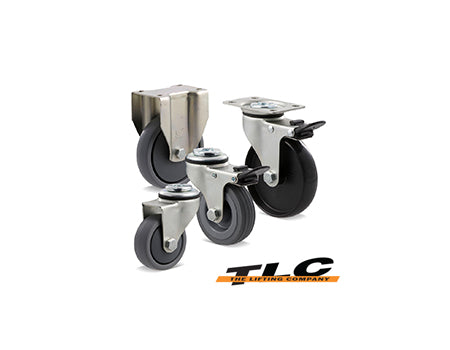

K Series
Able to carry up to 100 kg each, K Series castors are available in 65, 75 and 100 mm sizes, and in a variety of wheel types.
| Load rating: | 50–100 kg |
| Wheels: | Thermoplastic elastomer, hard nylon, grey rubber and polyurethane |
| Forks: | Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole and total brake configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
KJQ wheel
Material: Thermoplastic elastomer
Bearing: Precision ball bearing (also available with plain bearing)
Thread guard: Yes
| Order code: | KJQ65G |
| Diameter: | 65 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | KJQ75G |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | KJQ100G |
| Diameter: | 100 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
65 mm castors
Swivel plate
| Order code: | KJQ65G/KZP |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 63 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ65G/KZPTB |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Fixed plate
| Order code: | KJQ65G/KZF |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ65G/KZH |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 63 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ65G/KZHTB |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | KJQ75G/KZP |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ75G/KZPTB |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Fixed plate
| Order code: | KJQ75G/KZF |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ75G/KZH |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ75G/KZHTB |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | KJQ100G/KZP |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ100G/KZPTB |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Fixed plate
| Order code: | KJQ100G/KZF |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ100G/KZH |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ100G/KZHTB |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
KNN wheel
Max load: 50–70 kg
Material: Hard nylon
Bearing: Plain
Thread guard: No
| Order code: | KNN65 |
| Diameter: | 65 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | KNN75 |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | KNN100 |
| Diameter: | 100 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
65 mm castors
Swivel plate
| Order code: | KNN65/KZP |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 63 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KNN65/KZPTB |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Fixed plate
| Order code: | KNN65/KZF |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | KNN65/KZH |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 63 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KNN65/KZHTB |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | KNN75/KZP |
| Max load: | 65 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KNN75/KZPTB |
| Max load: | 65 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Fixed plate
| Order code: | KNN75/KZF |
| Max load: | 65 kg |
| Mount height: | 104 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | KNN75/KZH |
| Max load: | 65 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KNN75/KZHTB |
| Max load: | 65 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | KNN100/KZP |
| Max load: | 70 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KNN100/KZPTB |
| Max load: | 70 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Fixed plate
| Order code: | KNN100/KZF |
| Max load: | 70 kg |
| Mount height: | 131 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | KNN100/KZH |
| Max load: | 70 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KNN100/KZHTB |
| Max load: | 70 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
KSA wheel
Material: Grey rubber
Bearing: Plain
Thread guard: Optional
| Order code: | KSA65 |
| Diameter: | 65 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 12 mm |
| Enquiry Now With thread guard | |
| Order code: | KSA75 |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 12 mm |
| Enquiry Now With thread guard | |
| Order code: | KSA100 |
| Diameter: | 100 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 12 mm |
| Enquiry Now With thread guard | |
65 mm castors
Swivel plate
| Order code: | KSA65/KZP |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 63 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | KSA65/KZPTB |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | KSA65/KZF |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
Bolt hole
| Order code: | KSA65/KZH |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 63 mm |
| Enquiry Now With thread guard | |
Bolt hole and total brake
| Order code: | KSA65/KZHTB |
| Max load: | 50 kg |
| Mount height: | 96 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
75 mm castors
Swivel plate
| Order code: | KSA75/KZP |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | KSA75/KZPTB |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | KSA75/KZF |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
Bolt hole
| Order code: | KSA75/KZH |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now With thread guard | |
Bolt hole and total brake
| Order code: | KSA75/KZHTB |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
100 mm castors
Swivel plate
| Order code: | KSA100/KZP |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | KSA100/KZPTB |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | KSA100/KZF |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
Bolt hole
| Order code: | KSA100/KZH |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now With thread guard | |
Bolt hole and total brake
| Order code: | KSA100/KZHTB |
| Max load: | 50 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
KUQ wheel
Material: Polyurethane
Bearing: Precision ball bearing (also available with plain bearing)
Thread guard: Optional
| Order code: | KUQ75 |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now With thread guard | |
| Order code: | KUQ100 |
| Diameter: | 100 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now With thread guard | |
75 mm castors
Swivel plate
| Order code: | KUQ75/KZP |
| Max load: | 100 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | KUQ75/KZPTB |
| Max load: | 100 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | KUQ75/KZF |
| Max load: | 100 kg |
| Mount height: | 104 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
Bolt hole
| Order code: | KUQ75/KZH |
| Max load: | 100 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now With thread guard | |
Bolt hole and total brake
| Order code: | KUQ75/KZHTB |
| Max load: | 100 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
100 mm castors
Swivel plate
| Order code: | KUQ100/KZP |
| Max load: | 100 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | KUQ100/KZPTB |
| Max load: | 100 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | KUQ100/KZF |
| Max load: | 100 kg |
| Mount height: | 131 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
Bolt hole
| Order code: | KUQ100/KZH |
| Max load: | 100 kg |
| Mount height: | 131 mm |
| Turning radius: | 82 mm |
| Enquiry Now With thread guard | |
Bolt hole and total brake
| Order code: | KUQ100/KZHTB |
| Max load: | 100 kg |
| Mount height: | 131 mm |
| Turning radius: | 89 mm |
| Enquiry Now With thread guard | |
