Big M Series

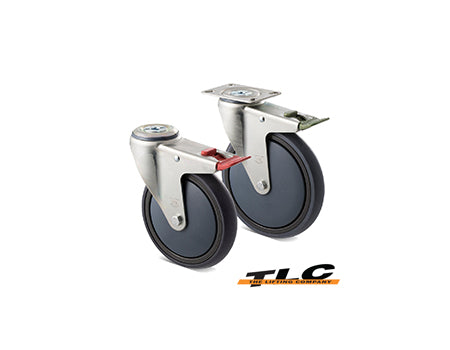

Big M Series
Able to carry up to 200 kg each, Big M Series castors are available in 150 and 175 mm sizes.
| Load rating: | 50–100 kg |
| Wheels: | Grey energy absorbent elastomer |
| Forks: | Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
QTQ wheel
Max load: 200 kg
Material: Grey energy absorbent elastomer
Bearing: Precision ball bearing (also available with plain bearing)
Thread guard: Yes
| Order code: | QTQ150G |
| Diameter: | 150 mm |
| Tread: | 34 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | QTQ175G |
| Diameter: | 175 mm |
| Tread: | 34 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
150 mm castors
Swivel plate
| Order code: | QTQ150G/MZP |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | 130 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | QTQ150G/MZPTB |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | QTQ150G/MZPDL |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Fixed plate
| Order code: | QTQ150G/MZF |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | QTQ150G/MZH |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | 130 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QTQ150G/MZHTB |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QTQ150G/MZHDL |
| Max load: | 200 kg |
| Mount height: | 187 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
175 mm castors
Swivel plate
| Order code: | QTQ175G/MZP |
| Max load: | 200 kg |
| Mount height: | 214 mm |
| Turning radius: | 145 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | QTQ175G/MZPTB |
| Max load: | 200 kg |
| Mount height: | 214 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | QTQ175G/MZPDL |
| Max load: | 200 kg |
| Mount height: | 214 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Bolt hole
| Order code: | QTQ175G/MZH |
| Max load: | 200 kg |
| Mount height: | 214 mm |
| Turning radius: | 145 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QTQ175G/MZHTB |
| Max load: | 200 kg |
| Mount height: | 214 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QTQ175G/MZHDL |
| Max load: | 200 kg |
| Mount height: | 214 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
