VRBS – Weld-on Load Ring.

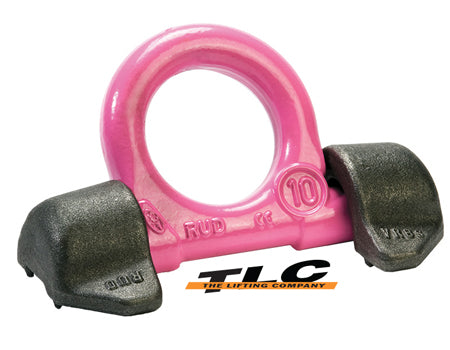

The lifting eye weldable VRBS > RBS is prepared for the direct welding to the substrate. The welding blocks (made of weldable material 1.0577+N (St. 52-3) have been provided with distance lugs as gap indication for the weld and stamped with the WLL identification number. The load ring, which can be tilted by 180°, made of high-tensile material, 100% crack detected and thus fully load rated.
Eye Plate, ready for welding VRBS-4t (7992488)
| Attribute |
Value |
Value |
| weight |
0.8 kg |
1.76 lbs |
| Nominal WLL |
4000 kg |
8800 lbs |
| A |
62.0 mm |
2-7/16" |
| B |
14 mm |
9/16" |
| T |
65.0 mm |
2-9/16" |
| C |
28 mm |
1-1/8" |
| D |
48 mm |
1-7/8" |
| E |
135 mm |
5-5/16" |
| F |
71 mm |
2-13/16" |
Eye Plate, ready for welding VRBS-6.7t (7992489)
| Attribute |
Value |
Value |
| weight |
1.6 kg |
3.53 lbs |
| Nominal WLL |
6700 kg |
15000 lbs |
| A |
88.0 mm |
3-15/32" |
| B |
20.0 mm |
3/4" |
| T |
84.0 mm |
3-5/16" |
| C |
39 mm |
1-9/16" |
| D |
60 mm |
2-3/8" |
| E |
170 mm |
6-11/16" |
| F |
92 mm |
3-5/8" |
Eye Plate, ready for welding VRBS-10t (7992490)
| Attribute |
Value |
Value |
| weight |
3.0 kg |
6.61 lbs |
| Nominal WLL |
10000 kg |
22000 lbs |
| A |
100.0 mm |
3-15/16" |
| B |
22.0 mm |
7/8" |
| T |
95.0 mm |
3-3/4" |
| C |
46 mm |
1-13/16" |
| D |
65 mm |
2-9/16" |
| E |
195 mm |
7-11/16" |
| F |
100 mm |
3-15/16" |
Eye Plate, ready for welding VRBS-16t (7992491)
| Attribute |
Value |
Value |
| weight |
6.6 kg |
14.55 lbs |
| Nominal WLL |
16000 kg |
35300 lbs |
| A |
130.0 mm |
5-1/8" |
| B |
30.0 mm |
1-3/16" |
| T |
127.0 mm |
5" |
| C |
57 mm |
2-1/4" |
| D |
90 mm |
3-17/32" |
| E |
263 mm |
10-3/8" |
| F |
134 mm |
5-9/32" |
Eye Plate, ready for welding VRBS-31.5t (60267)
| Attribute |
Value |
Value |
| weight |
15.60 kg |
34.39 lbs |
| Nominal WLL |
31500 kg |
69300 lbs |
| A |
160 mm |
6-13/32" |
| B |
42 mm |
1-21/32" |
| T |
178 mm |
7" |
| C |
78 mm |
3-1/16" |
| D |
130 mm |
5-1/8" |
| E |
373 mm |
14-11/16" |
| F |
195 mm |
7-11/16" |
