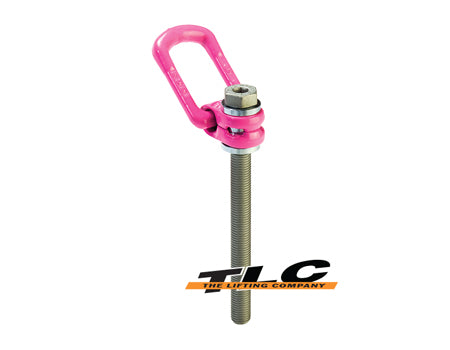

VLBG Vario – Long Bolt-on Load Ring
The RUD lifting ring VLBG can be turned by 360°, aligned to the direction of pull, the load ring can be tilted, guaranteeing full WLL in all load directions. Complete with a 100% crack detected hexagon insert socket screw for universal use of tools.
Also available with UNC bolts, and longer bolts (see VLBG-Vario)
Load ring VLBG 1t M12X1.5 with variable length (8600382)
| Attribute |
Value |
Value |
| weight |
0.0 kg |
0.00 lbs |
| Nominal WLL |
1000 kg |
2200 lbs |
| A |
32 mm |
1-1/4" |
| B |
54 mm |
2-1/8" |
| T |
75 mm |
2-15/16" |
| C |
34 mm |
1-11/32" |
| D |
26 mm |
1" |
| E |
38 mm |
1-1/2" |
| F |
10 mm |
3/8" |
| G |
29 mm |
1-5/32" |
| H |
12-31 mm |
1/2" up to 1-7/32" |
| I |
75 mm |
2-15/16" |
| K |
45 mm |
1-25/32" |
| L |
41-60 mm |
1-5/8" up to 2-3/8" |
| M |
M12X1.5 mm |
M12X1.5 |
| N |
32 mm |
1-1/4" |
Load ring VLBG 1.2t M14 with variable length (8600399)
| Attribute |
Value |
Value |
| weight |
0.0 kg |
0.00 lbs |
| Nominal WLL |
1200 kg |
2650 lbs |
| A |
33 mm |
1-5/16" |
| B |
56 mm |
2-3/16" |
| T |
85 mm |
3-11/32" |
| C |
36 mm |
1-27/64" |
| D |
30 mm |
1-3/16" |
| E |
39 mm |
1-9/16" |
| F |
13.5 mm |
17/32" |
| G |
36 mm |
1-27/64" |
| H |
14-34 mm |
9/16" up to 1-3/8" |
| I |
86 mm |
3-3/8" |
| K |
47 mm |
1-7/8" |
| L |
50-70 mm |
2" up to 2-3/4" |
| M |
M14 mm |
M14 |
| N |
38 mm |
1-1/2" |
Load ring VLBG 1.5t M16X1.5 with variable length (8600383)
| Attribute |
Value |
Value |
| weight |
0.0 kg |
0.00 lbs |
| Nominal WLL |
1500 kg |
3300 lbs |
| A |
33 mm |
1-5/16" |
| B |
56 mm |
2-3/16" |
| T |
85 mm |
3-11/32" |
| C |
36 mm |
1-27/64" |
| D |
30 mm |
1-3/16" |
| E |
39 mm |
1-9/16" |
| F |
13.5 mm |
17/32" |
| G |
36 mm |
1-27/64" |
| H |
16-39 mm |
5/8" up to 1-1/2" |
| I |
86 mm |
3-3/8" |
| K |
47 mm |
1-7/8" |
| L |
52-75 mm |
2-1/16" up to 2-15/16" |
| M |
M16X1.5 mm |
M16X1.5 |
| N |
38 mm |
1-1/2" |
Load ring VLBG 2t M18X1.5 with variable length (8600384)
| Attribute |
Value |
Value |
| weight |
0.0 kg |
0.00 lbs |
| Nominal WLL |
2000 kg |
4400 lbs |
| A |
50 mm |
1-31/32" |
| B |
82 mm |
3-1/4" |
| T |
110 mm |
4-11/32" |
| C |
54 mm |
2-1/8" |
| D |
45 mm |
1-25/32" |
| E |
55 mm |
2-5/32" |
| F |
16.5 mm |
21/32" |
| G |
43 mm |
1-11/16" |
| H |
18-47 mm |
23/32" up to 1-7/8" |
| I |
113 mm |
4-7/16" |
| K |
64 mm |
2-1/2" |
| L |
61-90 mm |
2-13/32" up to 3-17/32" |
| M |
M18X1.5 mm |
M18X1.5 |
| N |
48 mm |
1-7/8" |
Load ring VLBG 2.5t M20X1.5 with variable length (8600385)
| Attribute |
Value |
Value |
| weight |
0.0 kg |
0.00 lbs |
| Nominal WLL |
2500 kg |
5500 lbs |
| A |
50 mm |
1-31/32" |
| B |
82 mm |
3-1/4" |
| T |
110 mm |
4-11/32" |
| C |
54 mm |
2-1/8" |
| D |
45 mm |
1-25/32" |
| E |
55 mm |
2-5/32" |
| F |
16.5 mm |
21/32" |
| G |
43 mm |
1-11/16" |
| H |
20-52 mm |
13/16" up to 2" |
| I |
113 mm |
4-7/16" |
| K |
64 mm |
2-1/2" |
| L |
63-95 mm |
2-1/2" up to 3-3/4" |
| M |
M20X1.5 mm |
M20X1.5 |
| N |
48 mm |
1-7/8" |
Load ring VLBG 4t M24X1.5 with variable length (8600386)
| Attribute |
Value |
Value |
| weight |
0.0 kg |
0.00 lbs |
| Nominal WLL |
4000 kg |
8800 lbs |
| A |
50 mm |
1-31/32" |
| B |
82 mm |
3-1/4" |
| T |
125 mm |
4-15/16" |
| C |
54 mm |
2-1/8" |
| D |
45 mm |
1-25/32" |
| E |
67 mm |
2-5/8" |
| F |
18 mm |
23/32" |
| G |
43 mm |
1-11/16" |
| H |
24-62 mm |
15/16" up to 2-7/16" |
| I |
130 mm |
5-1/8" |
| K |
78 mm |
3-1/16" |
| L |
67-105 mm |
2-5/8" up to 4-1/8" |
| M |
M24X1.5 mm |
M24X1.5 |
| N |
48 mm |
1-7/8" |
Load ring VLBG 5t M30X2 with variable length (8600388)
| Attribute |
Value |
Value |
| Nominal WLL |
5000 kg |
11000 lbs |
| A |
60 mm |
2-3/8" |
| B |
103 mm |
4-1/16" |
| T |
147 mm |
5-25/32" |
| C |
65 mm |
2-9/16" |
| D |
60 mm |
2-3/8" |
| E |
67 mm |
2-5/8" |
| F |
22.5 mm |
7/8" |
| G |
61 mm |
2-13/32" |
| H |
30-74 mm |
30-74 |
| I |
151 mm |
5-15/16" |
| K |
80 mm |
3-1/8" |
| L |
91-135 mm |
91-135 |
| M |
M30X2 mm |
M30X2 |
| N |
67 mm |
2-5/8" |
