TLC VLBG - Bolt-on Load Ring (Short Bolt)
VLBG – Bolt-on Load Ring

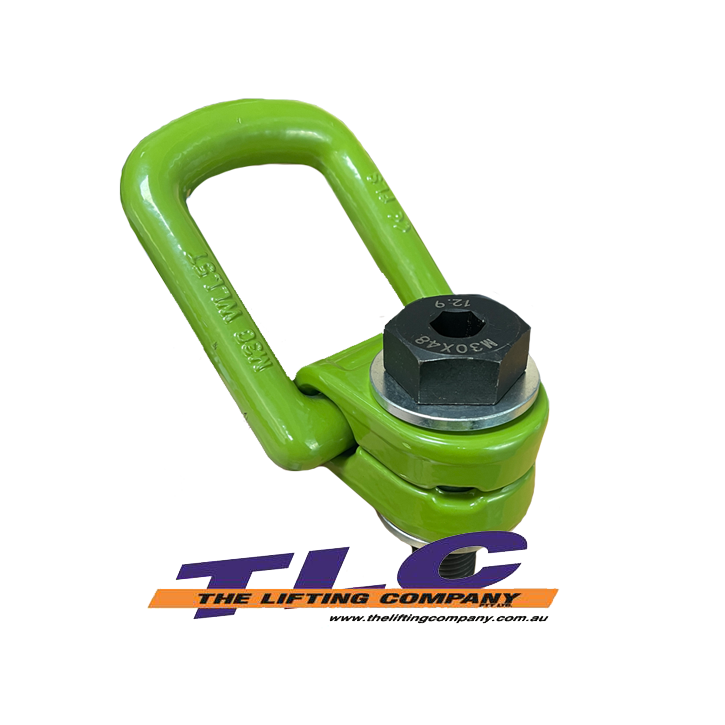

The TLC lifting ring VLBG can be turned by 360°, aligned to the direction of pull, the load ring can be tilted, guaranteeing full WLL in all load directions. Complete with a 100% crack detected hexagon insert socket screw for universal use of tools.
Load ring VLBG 1.2t M14 with bolt (H=21) ( 8600399)
| Attribute | Value | Value |
|---|---|---|
| weight | 0.52 kg | 1.15 lbs |
| Nominal WLL | 1200 kg | 2650 lbs |
| A | 33 mm | 1-5/16" |
| B | 56 mm | 2-3/16" |
| T | 85 mm | 3-11/32" |
| C | 36 mm | 1-27/64" |
| D | 30 mm | 1-3/16" |
| E | 39 mm | 1-9/16" |
| F | 13.5 mm | 17/32" |
| G | 36 mm | 1-27/64" |
| H | 21 mm | 13/16" |
| I | 86 mm | 3-3/8" |
| K | 47 mm | 1-7/8" |
| L | 57 mm | 2-1/4" |
| M | M14 mm | M14 |
| N | 38 mm | 1-1/2" |
Load ring VLBG 2t M18 with bolt (H=27) (8600384)
| Attribute | Value | Value |
|---|---|---|
| weight | 1.3 kg | 2.87 lbs |
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 50 mm | 1-31/32" |
| B | 82 mm | 3-1/4" |
| T | 110 mm | 4-11/32" |
| C | 54 mm | 2-1/8" |
| D | 45 mm | 1-25/32" |
| E | 55 mm | 2-5/32" |
| F | 16.5 mm | 21/32" |
| G | 43 mm | 1-11/16" |
| H | 27 mm | 1-1/16" |
| I | 113 mm | 4-7/16" |
| K | 64 mm | 2-1/2" |
| L | 70 mm | 2-3/4" |
| M | M18 mm | M18 |
| N | 48 mm | 1-7/8" |
Load ring VLBG 2.5t M22 with bolt (H=33) (8600385)
| Attribute | Value | Value |
|---|---|---|
| weight | 1.31 kg | 2.89 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 50 mm | 1-31/32" |
| B | 82 mm | 3-1/4" |
| T | 110 mm | 4-11/32" |
| C | 54 mm | 2-1/8" |
| D | 45 mm | 1-25/32" |
| E | 54 mm | 2-1/8" |
| F | 16.5 mm | 21/32" |
| G | 43 mm | 1-11/16" |
| H | 33 mm | 1-5/16" |
| I | 113 mm | 4-7/16" |
| K | 64 mm | 2-1/2" |
| L | 75 mm | 2-15/16" |
| M | M22 mm | M22 |
| N | 48 mm | 1-7/8" |
Load ring VLBG 4t M27 with bolt (7983658)
| Attribute | Value | Value |
|---|---|---|
| weight | 3.35 kg | 7.39 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 60 mm | 2-3/8" |
| B | 103 mm | 4-1/16" |
| T | 147 mm | 5-25/32" |
| C | 65 mm | 2-9/16" |
| D | 60 mm | 2-3/8" |
| E | 69 mm | 2-23/32" |
| F | 22.5 mm | 7/8" |
| G | 61 mm | 2-13/32" |
| H | 39 mm | 1-9/16" |
| I | 151 mm | 5-15/16" |
| K | 80 mm | 3-1/8" |
| L | 100 mm | 3-15/16" |
| M | M27 mm | M27 |
| N | 67 mm | 2-5/8" |
Load ring VLBG 7t M36 with special-bolt (8500829)
| Attribute | Value | Value |
|---|---|---|
| weight | 3.40 kg | 7.50 lbs |
| Nominal WLL | 7000 kg | 15430 lbs |
| A | 60 mm | 2-3/8" |
| B | 103 mm | 4-1/16" |
| T | 146 mm | 5-3/4" |
| C | 65 mm | 2-9/16" |
| D | 60 mm | 2-3/8" |
| E | 74 mm | 2-29/32" |
| F | 22.5 mm | 7/8" |
| G | 55 mm | 2-5/32" |
| H | 52 mm | 2-1/16" |
| I | 151 mm | 5-15/16" |
| K | 80 mm | 3-1/8" |
| L | 107 mm | 4-7/32" |
| M | M36 mm | M36 |
| N | 67 mm | 2-5/8" |
