TP03 Hydraulic Push-Off
| Product | Code |
|---|---|
| Hydraulic Push-Off – Class 2 | TPO-3A |
| Hydraulic Push-Off – Class 3 | TPO-3B |

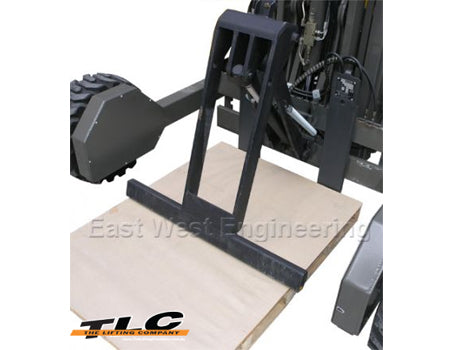

The Type TPO3 Push-Off is ideally suited to the delivery of turf and landscape supplies where immediate retrieval of pallets is required. Used in conjunction with smooth top pallets, the hydraulically operated Push-Off is used to push the product from the pallets.
The Push-Off is simple to operate with smooth & efficient operation and eliminates expensive replacement or retrieval of pallets when delivering. The compact design reduces lost load while still providing enormous horizontal force.
SPECIFICATIONS:
• Order to suit ISO/FEM “A” or “B” mount
• Operational range 1210mm
• Lost Load 50mm (from front face of Tines)
• Unit Weight 110kg
• Maximum operating pressure 160 bar
• Maximum hydraulic flow 30 litres/min
