Hydraulic Reachforks
| Product | Code |
|---|---|
| SWL 3T -1200mm | RG2301200-850 |
| SWL 3T -1350mm | RG2301350-1000 |
| SWL 3.5T -1200mm | RG4351200-850 |
| SWL 3.5T -1350mm | RG4351350-1000 |
| SWL 4.5T -1200mm | RG4451200-850 |
| SWL 4.5T -1350mm | RG4451350-1000 |
| SWL 3.5T -1350mm | RG4351350-1000C3 |

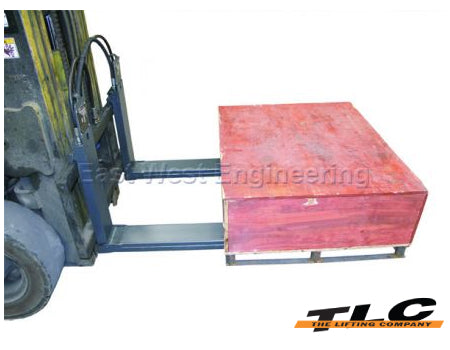

Reachforks are hydraulically extendable and retractable forks saving time, space and money. Available from 2 to 10.5 tonne capacity, reachforks allow for ‘double-deep’ stacking, increasing warehouse capacity by up to 30% compared to ‘single-deep’ warehouse operations.

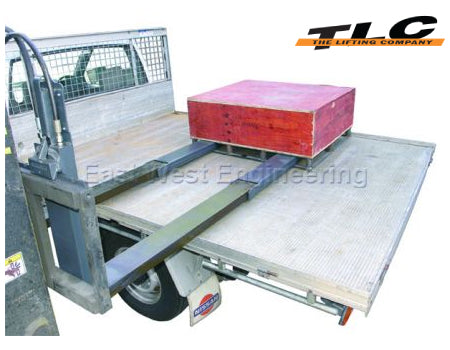

Reachforks allow trucks to be loaded/unloaded from one side eliminating the need to turn the vehicle or drive the Forklift to the opposite side making the operation much safer. To operate the reachforks, the Forklift requires an additional hydraulic function.
Options available:
• Pallet Stops – preventing the reachforks from protruding through to the rear pallet
• Load Guards – custom made to suit if required
| TYPE |
Length (unextended) |
Extension Length |
SWL at 600mm Load Centre |
Weight Per Pair |
ISO / FEM Mounting |
|
(mm) |
(mm) |
(kg) |
(kg) |
Class |
|
| RG230 1200/850 |
1200 |
850 |
3000 |
166 |
II |
| RG230 1350/1000 |
1350 |
1000 |
3000 |
180 |
II |
| RG435 1200/850 |
1200 |
850 |
3500 |
200 |
II / III |
| RG435 1350/1000 |
1350 |
1000 |
3500 |
217 |
II / III |
| RG435 1350/1000C3 |
1350 |
1000 |
3500 |
217 |
III |
| RG445 1200/850 |
1200 |
850 |
4500 |
217 |
III |
| RG445 1350/1000 |
1350 |
1000 |
4500 |
217 |
III |
