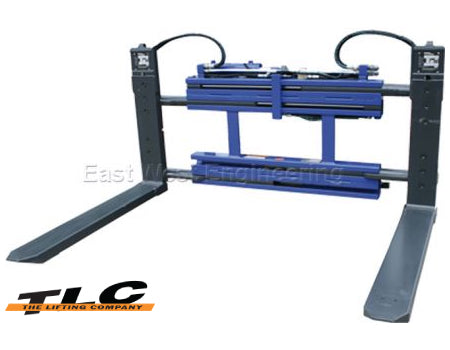

Fork Positioner Reachforks
| Product | Code |
|---|---|
| Fork Positioner K Reachforks | RG435-FPX25 |
Fork Positioner Reachforks are hydraulically extendable and retractable forks saving time, space and money. Available from 2 to 10.5 tonne capacity, reachforks allow for ‘double-deep’ stacking, increasing warehouse capacity by up to 30% compared to ‘single-deep’ warehouse operations.
Reachforks allow trucks to be loaded/unloaded from one side eliminating the need to turn the vehicle or drive the Forklift to the opposite side making the operation much safer. To operate the reachforks, the Forklift requires an additional hydraulic function.
Fork positioning enables hydraulic positioning of the forks, good for applications with frequently changing loads.
Options available:
• Pallet Stops – preventing the reachforks from
protruding through to the rear pallet
• Load Guards – custom made to suit if required
|
Model |
Capacity@ Load Centre |
Mounting Class |
Opening Range |
Fork Width |
Fork Thickness |
Fork Length |
Fork Stroke |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
RG435-FPX25 |
2500@600 |
II |
510-1010 |
169 |
57 |
1350 |
1000 |
345 |
80 |
335 |
*Other capacities, fork lengths and opening ranges on request.
