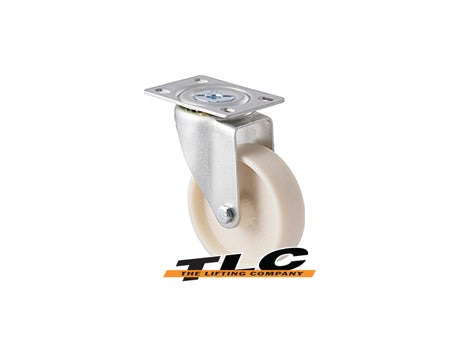

M Series High/Low Temperature
Based on the versatile M Series, these high and low temperature castors are the perfect choice for extreme temperature environments like ovens or industrial freezers.
| Load rating: | Up to 100 kg (-30°C–400°C) |
| Wheels: | Glass reinforced nylon, high temperature phenolic, cast iron |
| Forks: | Zinc plated Core Coat™ in swivel plate, fixed plate, and bolt hole configurations |
| Warranty: | One year |
|
Mount dimensions: |
|
Castor options
MHH wheel
Max load: 80 kg (-30°C–150°C), 70 kg (180°C), 60 kg (210°C), 50 kg (230°C for short periods only)
Material: Glass reinforced nylon, lighter hub
Bearing: Plain bearing
Thread guard: No
| Order code: | MHH100 |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 41 mm |
| Bore: | 12 mm |
| Enquiry Now | |
High temperature castors
Swivel plate
| Order code: | MHH100/MZPHT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
North American swivel plate
| Order code: | MHH100/MZPNHT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Fixed plate
| Order code: | MHH100/MZFHT |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
North American fixed plate
| Order code: | MHH100/MZFNHT |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MHH100/MZHHT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Low temperature castors
Swivel plate
| Order code: | MHH100/MZPLT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
North American swivel plate
| Order code: | MHH100/MZPNLT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Fixed plate
| Order code: | MHH100/MZF |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
North American fixed plate
| Order code: | MHH100/MZFNLT |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MHH100/MZHLT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
MKT wheel
Max load: 125 kg (100°C), 100 kg (250°C), 40 kg (300°C)
Material: High temperature phenolic
Bearing: Plain bearing
Thread guard: No
| Order code: | MHH100 |
| Diameter: | 100 mm |
| Tread: | 35 mm |
| Hub: | 41 mm |
| Bore: | 12 mm |
| Enquiry Now | |
High temperature castors
Swivel plate
| Order code: | MKT100/MZPHT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
North American swivel plate
| Order code: | MKT100/MZPNHT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Fixed plate
| Order code: | MKT100/MZFHT |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
North American fixed plate
| Order code: | MKT100/MZFNHT |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MKT100/MZHHT |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
DCI wheel
Max load: 100 kg (400°C)
Material: Cast iron
Bearing: Plain bearing
Thread guard: No
| Order code: | DCI75 |
| Diameter: | 75 mm |
| Tread: | 28 mm |
| Hub: | 41 mm |
| Bore: | 12 mm |
| Enquiry Now | |
High temperature castors
Swivel plate
| Order code: | DCI75/MZPHT |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
North American swivel plate
| Order code: | DCI75/MZPNHT |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Fixed plate
| Order code: | DCI75/MZFHT |
| Mount height: | 106 mm |
| Turning radius: | n/a |
| Enquiry Now | |
North American fixed plate
| Order code: | DCI75/MZFNHT |
| Mount height: | 106 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | DCI75/MZHHT |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
