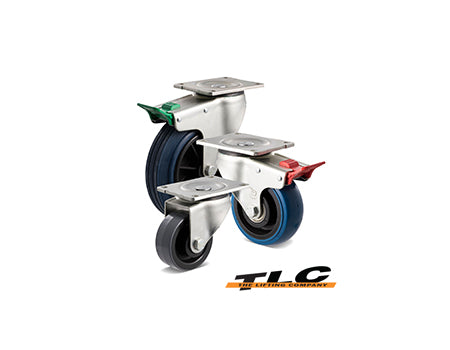

O Series
O Series
Able to carry up to 500 kg each, the versatile O Series castors are available in 100, 125, 150 and 200 mm sizes, and in a wide range of wheel types.
| Load rating: | 230–500 kg |
| Wheels: | Blue and grey high resilience elastomer, polyurethane on nylon, hard nylon |
| Forks: | Basic zinc finish (no lacquer) in swivel plate, fixed plate, bolt hole and total brake configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
HBR wheel
Max load: 230–250 kg
Material: Blue high resilience elastomer
Bearing: Roller bearing
Thread guard: Optional
| Order code: | HBR150 |
| Diameter: | 150 mm |
| Tread: | 40 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now With thread guard | |
| Order code: | HBR200 |
| Diameter: | 200 mm |
| Tread: | 50 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now With thread guard | |
150 mm castors
Swivel plate
| Order code: | HBR150/OZP |
| Max load: | 230 kg |
| Mount height: | 189 mm |
| Turning radius: | 121 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | HBR150/OZPTB |
| Max load: | 230 kg |
| Mount height: | 189 mm |
| Turning radius: | 180 mm |
| Enquiry Now With thread guard | |
Swivel plate and direction lock
| Order code: | HBR150/OZPDL |
| Max load: | 230 kg |
| Mount height: | 189 mm |
| Turning radius: | 180 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | HBR150/HZF |
| Max load: | 230 kg |
| Mount height: | 189 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
200 mm castors
Swivel plate
| Order code: | HBR200/OZP |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | 152 mm |
| Enquiry Now With thread guard | |
Swivel plate and direction lock
| Order code: | HBR200/OZPDL |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | 195 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | HBR200/HZF |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
OBQ wheel
Max load: 300–400 kg
Material: Blue high resilience elastomer
Bearing: Precision bearing
Thread guard: No
| Order code: | OBQ100 |
| Diameter: | 100 mm |
| Tread: | 50 |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
| Order code: | OBQ125 |
| Diameter: | 125 mm |
| Tread: | 50 |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
| Order code: | OBQ150 |
| Diameter: | 150 mm |
| Tread: | 50 |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
| Order code: | OBQ200 |
| Diameter: | 200 mm |
| Tread: | 50 |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | OBQ100/OZP |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | 96 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | OBQ100/OZPTB |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | 162 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | OBQ100/OZPDL |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | 162 mm |
| Enquiry Now | |
Fixed plate
| Order code: | OBQ100/HZF |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | n/a |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | OBQ125/OZP |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 109 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | OBQ125/OZPTB |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 180 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | OBQ125/OZPDL |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 180 mm |
| Enquiry Now | |
Fixed plate
| Order code: | OBQ125/HZF |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | n/a |
| Enquiry Now | |
150 mm castors
Swivel plate
| Order code: | OBQ150/OZP |
| Max load: | 400 kg |
| Mount height: | 189 mm |
| Turning radius: | 121 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | OBQ150/OZPTB |
| Max load: | 400 kg |
| Mount height: | 189 mm |
| Turning radius: | 180 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | OBQ150/OZPDL |
| Max load: | 400 kg |
| Mount height: | 189 mm |
| Turning radius: | 180 mm |
| Enquiry Now | |
Fixed plate
| Order code: | OBQ150/HZF |
| Max load: | 400 kg |
| Mount height: | 189 mm |
| Turning radius: | n/a |
| Enquiry Now | |
200 mm castors
Swivel plate
| Order code: | OBQ200/OZP |
| Max load: | 400 kg |
| Mount height: | 239 mm |
| Turning radius: | 152 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | OBQ200/OZPTB |
| Max load: | 400 kg |
| Mount height: | 239 mm |
| Turning radius: | 195 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | OBQ200/OZPDL |
| Max load: | 400 kg |
| Mount height: | 239 mm |
| Turning radius: | 195 mm |
| Enquiry Now | |
Fixed plate
| Order code: | OBQ200/HZF |
| Max load: | 400 kg |
| Mount height: | 239 mm |
| Turning radius: | n/a |
| Enquiry Now | |
HSR wheel
Max load: 250 kg
Material: Grey high resilience elastomer
Bearing: Roller bearing
Thread guard: Optional
| Order code: | HSR200 |
| Diameter: | 200 mm |
| Tread: | 50 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now With thread guard | |
200 mm castors
Swivel plate
| Order code: | HSR200/OZP |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | 152 mm |
| Enquiry Now With thread guard | |
Swivel plate and total brake
| Order code: | HSR200/OZPTB |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | 195 mm |
| Enquiry Now With thread guard | |
Swivel plate and direction lock
| Order code: | HSR200/OZPDL |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | 195 mm |
| Enquiry Now With thread guard | |
Fixed plate
| Order code: | HSR200/HZF |
| Max load: | 250 kg |
| Mount height: | 239 mm |
| Turning radius: | n/a |
| Enquiry Now With thread guard | |
HUR wheel
Max load: 300–500 kg
Material: Polyurethane on nylon
Bearing: Roller bearing
Thread guard: Optional (150 mm wheel only)
| Order code: | HUR100 |
| Diameter: | 100 mm |
| Tread: | 40 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
| Order code: | HUR125 |
| Diameter: | 125 mm |
| Tread: | 40 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
| Order code: | HUR150 |
| Diameter: | 150 mm |
| Tread: | 40 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
| Order code: | HUR200 |
| Diameter: | 200 mm |
| Tread: | 48 mm |
| Hub: | 60 mm |
| Bore: | 12.7 mm |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | HUR100/OZP |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | 96 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | HUR100/OZPTB |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | 162 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | HUR100/OZPDL |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | 162 mm |
| Enquiry Now | |
Fixed plate
| Order code: | HUR100/HZF |
| Max load: | 300 kg |
| Mount height: | 138 mm |
| Turning radius: | n/a |
| Enquiry Now | |
