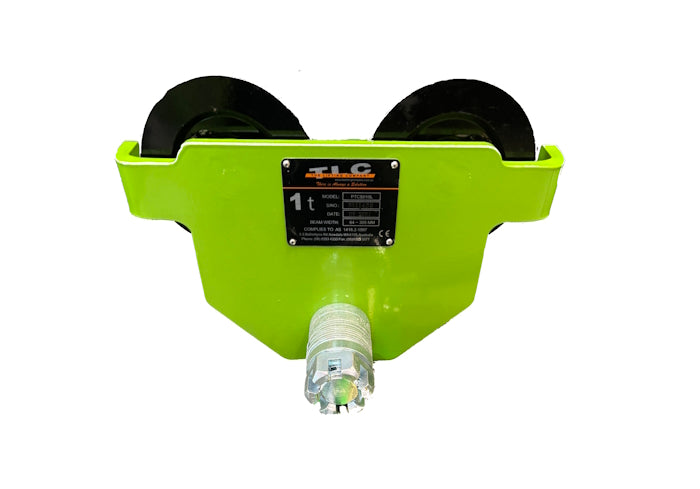

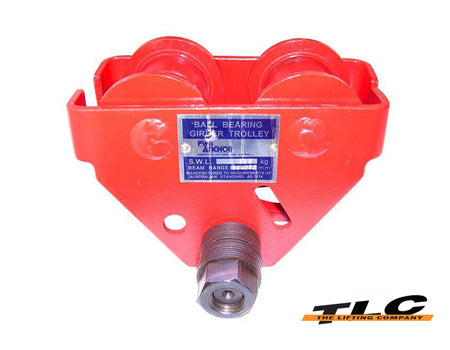

Girder Trolley – PWB (Push Type)

No review yet. Write Review

$0.00

Description

Girder Trolley – PWB (Push Type). Designed to travel along RSJ, universal beams and universal columns,push and geared trolleys suits a variety of beam widths to provide an easy and convenient means to moving a load.

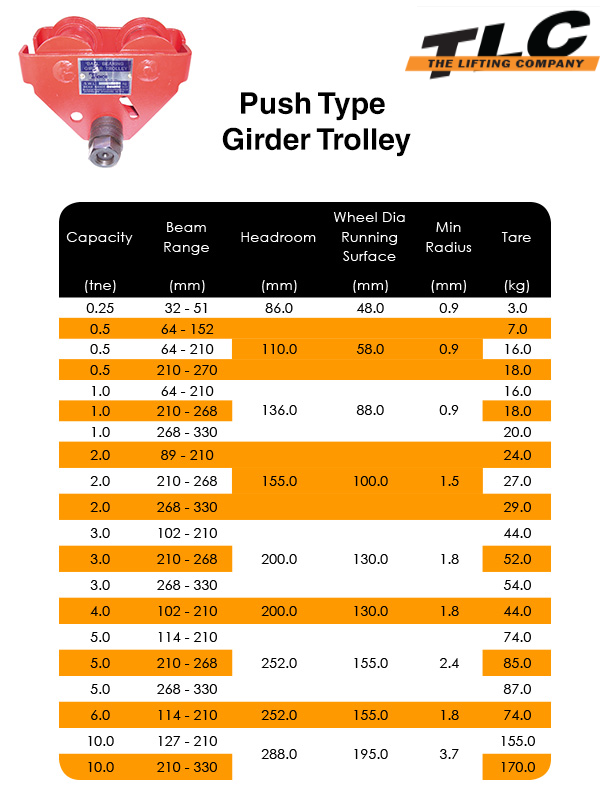

Capacity	Beam Range	Headroom	Wheel Dia Running Surface	Min Radius	Tare
(tne)	(mm)	(mm)	(kg)	(mm)	(kg)
0.25	32-51	86	48	0.9	3
0.5	64-152	110	58	0.9	7
0.5	64-210				16
0.5	210-270				18
1	64-210	136	88	0.9	16
1	210-268				18
1	268-330				20
2	89-210	155	100	1.5	24
2	210-268				27
2	268-330				29
3	102-210	200	130	1.8	44
3	210-268				52
3	268-330				54
4	102-210	200	130	1.8	44
5	114-210	252	155	2.4	74
5	210-268				85
5	268-330				87
6	114-210	252	155	1.8	74
10	127-210	288	195	3.7	155
10	210-330	288	195	3.7	170

Back to Girder Trolleys & Clamps
