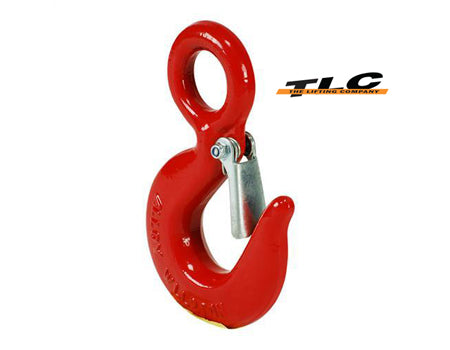

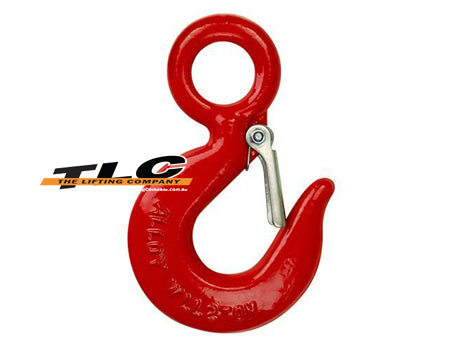

Hoist Hook Alloy Eye

Hoist Hook Alloy Eye

Hoist Hook Alloy Eye

Hoist Hook Alloy Eye

No review yet. Write Review

$0.00

Style

Style

104510 104515 104520 104530 104545 104570 104599

InStock SOLD OUT

Description

International eye hoist hooks with safety latch are commonly used for general lifting applications such as wire rope slings or winch cables.

• Marked with the working load limit and alloy. TLC branded with manufacture quality mark.
• Batch tested, test certificates available upon request.
• Manufactured from forged alloy steel quenched and tempered.
• Spare Latch kits are available


	WLL(T)	CODE	Wt.(kg)	DIMENSIONS (mm)
	WLL(T)	CODE	Wt.(kg)	L	L1	D	D1	E
	1	104510	0.28	82	110	16	19	22
	1.5	104515	0.4	93.5	125	17.5	23	23
	2	104520	0.65	103	140.5	21	28	24
	3	104530	0.94	119	162	23	31	27.5
	4.5	104545	1.95	146	201	30	39	33
	7	104570	3.77	186.5	256	38	51	40
	11	104599	6.80	231.5	317	46	62	51

Back to Freight 70 & Accessories

The Lifting Company (TLC)

The Lifting Company (TLC) is part of Lifting Solutions Group, a business group within Axel Johnson International. With companies across Europe, Canada and APAC, the group is a global player specializing in lifting equipment, steel wire rope, height safety and related services. As part of Lifting Solutions Group, we combine strong local presence and customer knowledge with the resources, expertise and long-term stability of an international group. This enables us to share knowledge, develop safer and more sustainable solutions, and grow together with our customers.

CLICK HERE TO READ MORE ABOUT THE GROUP
