Products
WRF Roll-over Bin
| Product | Code |
|---|---|
| Roll-over Bin | WRF11X11 |

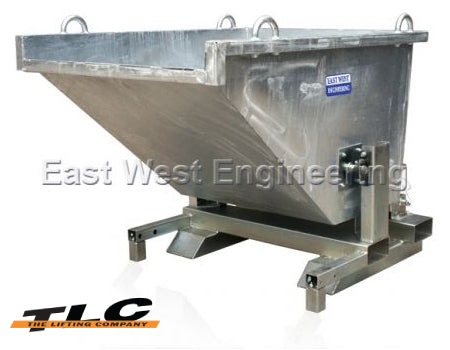

The WRF ROLL OVER FORKLIFT BIN has been designed for a smooth tipping action with minimal impact during emptying. Side bearings prevent the bin being dislodged during tipping as is common with the roll over style bins.

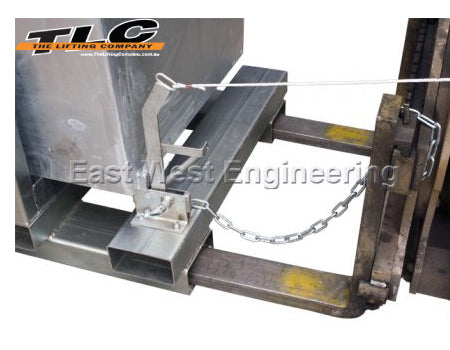

The cut away front design makes this bin ideal for tipping liquids. The release mechanism is activated by the forklift operator pulling the cord from the driver’s seat.

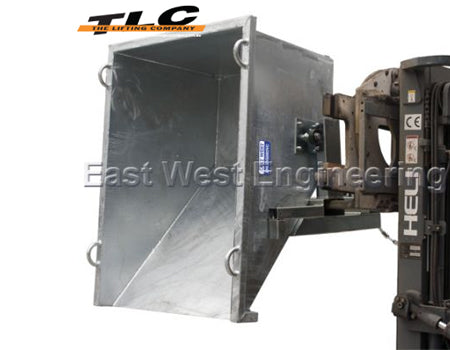

Four-way fork pocket allows entry for sideways tipping action.
Crane lugs and drain plug are fitted as standard.
SPECIFICATIONS:
• Pocket size 185 x 65mm
• Pocket Centres – 850mm
• Working Load Limit (WLL) – 1500kg
• Unit Weight – 235kg
• Volume Capacity – 0.77mᶟᶾ
• HCG 605mm • VCG 415mm
• Zinc finish
OVERALL DIMENSIONS:
Length: 1690mm Width: 1156mm Height: 1238mm
Options Available

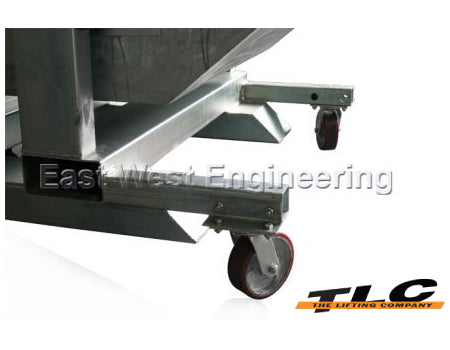

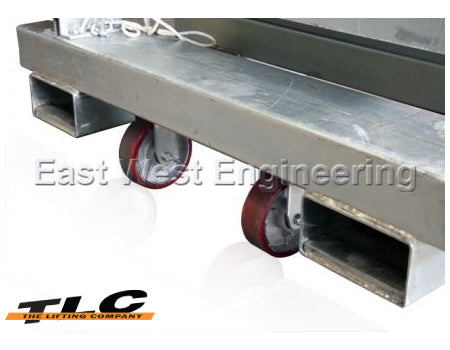

Wheel Castor kit 150mm Diameter (2 fixed 2 swivel) Set of four $300.00 +GST
