DER40 Forklift Drum Rotators
| Product | Code |
|---|---|
| Drum Rotator | DER40C |
| Drum Rotator + PBO | DER40C-PBO |

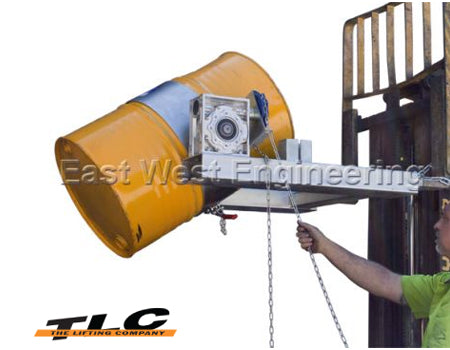

The DER40C Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops pulling the hand chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via a hand chain

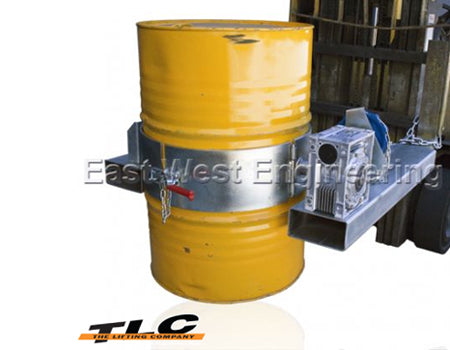

• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
SPECIFICATIONS:
| Working Load Limit (WLL) | 400kg |
| Load Centre | 940mm |
| Rotation | 360° |
| Unit Weight | 90kg |
| Fork Pocket Size | 185 x 60mm |
| Fork Pocket Centres | 840mm |
A special plastic barrel option (PBO) can be fitted to for use with plastic drums and barrels as well as the standard steel drums. When ordering with this option select DER40C-PBO.
