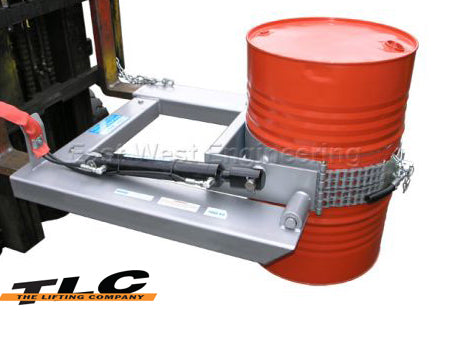

DC-R2 Hydraulic Drum Rotator
The type DC-R2 Hydraulic Drum Rotator is designed to lift and rotate 205 litre Drums. A Chain Belly Strap with an eccentric lock holds the Drum firmly in position. Rotation is provided by the Forklift hydraulics and controlled by the 3 function lever.
This unit is designed with a heavy lift capacity. The standard finish is painted enamel.

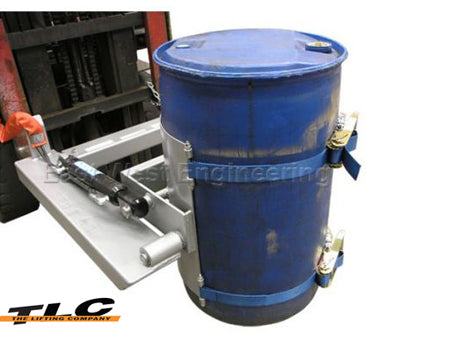

This unit can also be supplied with a PBO Plastic Barrel Option (order code: DC-R2PBO)
* Please note: When used with PBO option the SWL of the unit is reduced to 350KG
SPECIFICATIONS:
• Safe Working Load (SWL) 1000kg
• Unit Weight 135kg

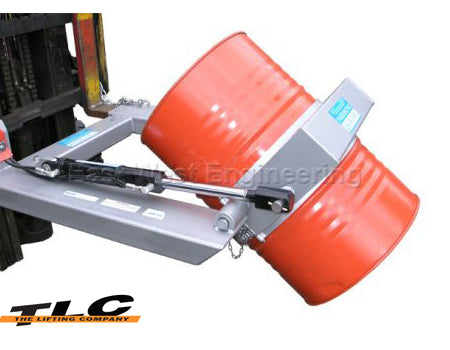

• 130° Rotation
• Load Centre 1050mm
• Pocket Size 185 x 65
• Pocket Centres 874mm
• Horizontal C of G 600mm
The Lifting Company (TLC) is a Western Australian owned and operated company, which was formed in 2001 to provide specialised Lifting, Rigging, Height Safety, Material Handling products and services to Perth’s construction, mining, industrial, and engineering sectors.
TLC is committed to achieving the highest standards of excellence in its products, services and personnel. It strives to be the most reputable and reliable product and service provider in the lifting, rigging and height safety industry.
The Lifting Company is proud to have a dedicated core team of specialists with capability to design, engineer, manufacture, test and certify quality lifting, rigging and height safety equipment.
Product Support Documents:
-
DC-R2PBO Demonstration video(Youtube)
