DC-GR2 Hydraulic Drum Grab/Rotator
| Product | Code |
|---|---|
| Hydraulic Drum Grab/Rotator | DC-GR2 |

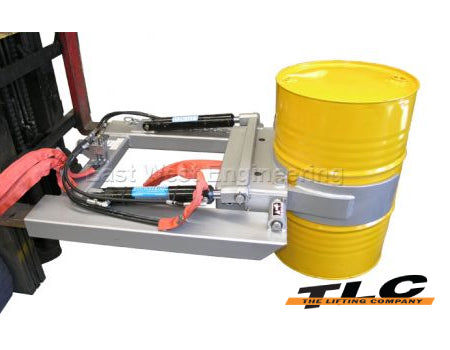

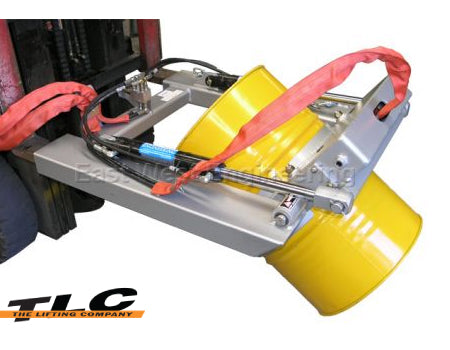

The type DC-GR2 Hydraulic Drum Grab/Rotator is a heavy duty 205 litre Drum Lifter with hydraulic grab/rotation ability. With 1 tonne lift capacity, this attachment is ideal for the recycle industry and for mining applications. This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums.
This unit is fitted with quick connect couplings for connection to the 3rd and 4th Forklift hydraulic valves.
The standard finish is painted enamel.
SPECIFICATIONS:
• Safe Working Load (SWL) 1000kg
• Unit Weight 175kg
• 130° Rotation
• Load Centre 1307.5mm
• Pocket Size 185 x 65
• Pocket Centres 874mm
• Horizontal C of G 700mm
A comprehensive product specification sheet is available on pdf see below.
Product Support Documents:
-
DC-GR2 Hydraulic Drum Rotator
(Youtube)
