DC-GR2-HPP Hydraulic Drum Grab/Rotator
| Product | Code |
|---|---|
| Hydraulic Drum Grab/Rotator | DC-GR2-HPP |

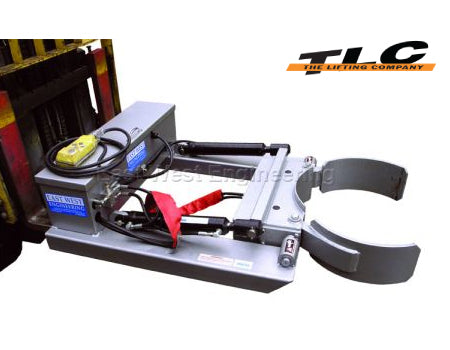

The type DC-GR2/HPP Hydraulic Drum Grab/Rotator is a heavy-duty 205 litre Drum Lifter with hydraulic grab/rotation ability. The battery/electric Hydraulic Power Pack (HPP) eliminates the need to connect to the Forklift’s hydraulic system. This self contained unit includes a 12 volt hydraulic pump, 105ah industrial battery and pulse battery charger. Operation of the HPP is by push button crane pendant connected to a 4 metre control cable allowing the Forklift operator to work the attachment from the drivers seat.
This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums. The standard finish is painted enamel.
SPECIFICATIONS:
• Safe Working Load (SWL) 1000kg
• Unit Weight 295kg
• 130° Rotation
• Load Centre 1307.5mm
• Pocket Size 185 x 65
• Pocket Centres 874mm
• Horizontal C of G 410mm
A comprehensive product specification sheet is available on pdf see below.
Product Support Documents:
- DC-GR2-HPP operation(Youtube)
