Fork Clamp
| Product | Code |
|---|---|
| Fork Clamp 2200KG C2 | S12-KG22 |

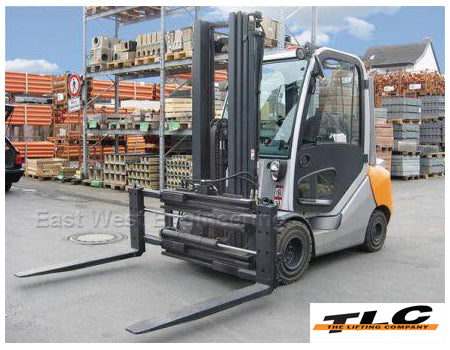

Fork clamps allow forks to be adjusted beyond the width of the lift truck. Due to their robust construction and appropriate cylinders with check valves, a powerful clamping force can be generated and maintained between the forks. Special slip-on arms enable pallet-less handling of different goods and versatile load handling, for example block and brick clamp arms for construction material or drum clamp arms for drum handling. By installing an adjustable pressure relief valve the clamping pressure can be changed. Fork clamps can be combined with separate sideshift or a sideshift valve. With rotatable fork clamps different types of bins can be handled and emptied sideward.
|
Fork Clamps |
||||||||
|
Model |
Clamp Capacity @ Load Centre |
Mounting Class |
Carriage Width |
Opening range ITI |
Fork Size |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
S12-KG15 |
1500@500 |
II |
950 |
300-1360 |
1100X120X40 |
350 |
130 |
175 |
|
S12-KG22 |
2200@500 |
II |
1050 |
300-1460 |
1100X125X45 |
380 |
130 |
175 |
|
S12-KG28 |
2800@500 |
III |
1150 |
280-1550 |
1100X140X50 |
520 |
140 |
170 |
|
S12-KG35 |
3500@500 |
III |
1250 |
280-1650 |
1100X140X50 |
535 |
140 |
170 |
|
S12-KG45 |
4500@500 |
III |
1350 |
260-1700 |
1200X150X60 |
670 |
155 |
180 |
|
S12-KG48 |
4500@600 |
III |
1350 |
260-1700 |
1200X150X60 |
690 |
155 |
175 |
|
S12-KG50 |
5000@600 |
IV |
1450 |
260-1800 |
1200X150X65 |
760 |
155 |
180 |
|
S12-KG60 |
6000@600 |
IV |
1600 |
260-1950 |
1200X150X70 |
970 |
175 |
175 |
|
S12KG70 |
7000@600 |
IV |
1750 |
260-2100 |
1200X150X70 |
1090 |
175 |
195 |
|
360 Degree Rotating Fork Clamps |
||||||||
|
(kg@mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
S12-KG15-360 |
1500@500 |
II |
950 |
300-1360 |
1100X120X40 |
575 |
250 |
200 |
|
S12-KG22-360 |
2200@500 |
II |
1050 |
300-1460 |
1100X125X45 |
615 |
250 |
210 |
|
S12-KG28-360 |
2800@500 |
III |
1150 |
280-1550 |
1100X140X50 |
790 |
265 |
220 |
|
S12-KG35-360 |
3500@500 |
III |
1250 |
280-1650 |
1100X140X50 |
850 |
275 |
220 |
|
S12-KG45-360 |
4500@500 |
III |
1350 |
260-1700 |
1200X150X60 |
985 |
290 |
240 |
|
S12-KG48-360 |
4500@600 |
III |
1350 |
260-1700 |
1200X150X60 |
1210 |
295 |
215 |
|
S12-KG50-360 |
5000@600 |
IV |
1450 |
260-1800 |
1200X150X65 |
1285 |
295 |
220 |
|
S12-KG60-360 |
6000@600 |
IV |
1600 |
260-1950 |
1200X150X70 |
1515 |
310 |
245 |
|
S12KG70-360 |
7000@600 |
IV |
1750 |
260-2100 |
1200X150X70 |
1840 |
335 |
255 |
