FJA350 Extension Jib – 3.5T
| Product | Code |
|---|---|
| Extension Jib 3500kg WLL | FJA350 |

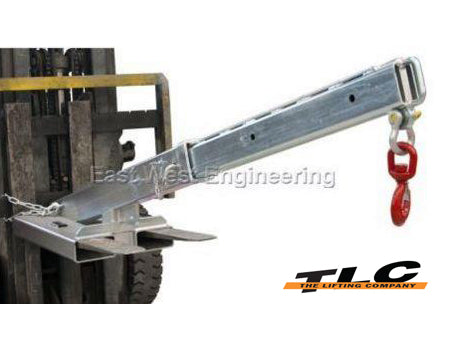

The FJA350 TELESCOPIC EXTENSION FIXED JIB is a valuable addition to any workshop. Designed to provide provide optimum safety for the forklift operator and assistants during any ‘lift by hook’ application.

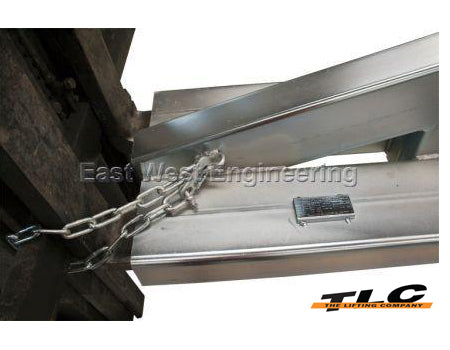

The compact closed length of the jib allows for greater lifting capability and manouevrability while extending up to 2500mm in length gives extra versatility when required. The tilt angle of the boom increases the jibs capability while a safety chain securely attaches unit to the forklift.

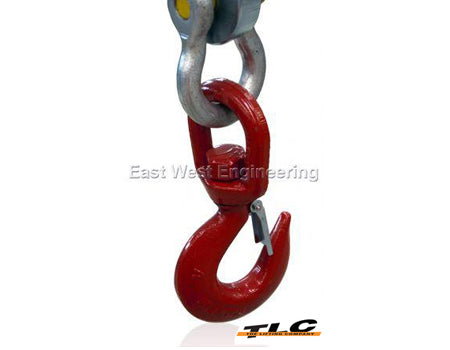

Removal of the locking pin allows the jib to be extended giving a choice of four different lifting positions. A safety swivel hook is fitted as standard.
Zinc finish for durability. Certified to relevant Australian Standards and supplied with instruction manual, certification and risk assessment.
SPECIFICATIONS:
- Working Load Limit (WLL) 3500kg Max.
- Unit Weight 115kg
- Load Centre 800mm
- Pocket Size 185 x 65
- Pocket Centres 300 mm
- Horizontal C of G 580mm
- Vertical C of G 110mm
|
Working Load Limit (WLL) per position |
||||
|
Position |
1 |
2 |
3 |
4 |
|
Extension (mm) |
800 |
1390 |
1880 |
2365 |
|
WLL (kg) |
3500 |
850 |
500 |
350 |
