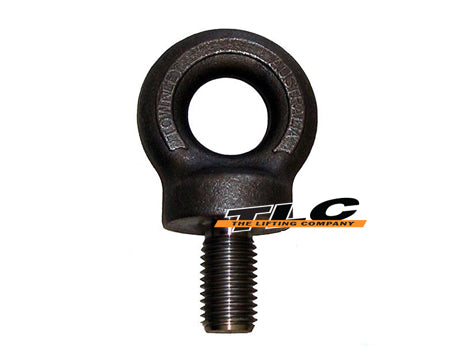

TDF Eyebolt – Load Rated
TDF Eyebolt – Load Rated. Collared Lifting Eyebolts – AS2317 are used in lifting, tensioning and staying systems for connection to a tapped hole.
| Grade 4 - Eyebolts and Eyenuts to AS 2317 | |||||||
| Nominal Thread | Single Eyebolt or Eyenut | Pair of Eyebolts or Eyenuts | |||||
 |
 Transverse |
 Axial |
 Transverse |
 Max included angle 30 degrees |
 Max included angle 60 degrees |
 Max included angle 90 degrees |
|
| Method of loading | 0.25 | 1 | 0.5 | 1.25 | 0.8 | 0.5 | |
| Metric | Imperial BSW/UNC | ||||||
| M10 | 3/8” | 0.06 | 0.25 | 0.12 | 0.31 | 0.2 | 0.12 |
| M12 | ½” | 0.1 | 0.4 | 0.2 | 0.5 | 0.32 | 0.2 |
| M16 | 5/8” | 0.2 | 0.8 | 0.4 | 1 | 0.64 | 0.4 |
| M20 | ¾” | 0.4 | 1.6 | 0.8 | 2 | 1.28 | 0.8 |
| M22 | 7/8” | 0.5 | 2 | 1 | 2.5 | 1.6 | 1 |
| M24 | 1” | 0.62 | 2.5 | 1.25 | 3.1 | 2 | 1.25 |
| M30 | 1 1/8” | 1 | 4 | 2 | 5 | 3.2 | 2 |
| M33 | 1 ¼” | 1.25 | 5 | 2.5 | 6.3 | 4 | 2.5 |
| M36 | 1 ½” | 1.57 | 6.3 | 3.1 | 7.9 | 5 | 3.1 |
| M39 | 1 ½” | 1.75 | 7 | 3.5 | 8.8 | 5.6 | 3.5 |
| M42 | 1 ¾” | 2 | 8 | 4 | 10 | 6.4 | 4 |
| M48 | 2” | 2.5 | 10 | 5 | 12.6 | 8 | 5 |
| M56 | 2 ½” | 3.7 | 15 | 7.5 | 18.9 | 12 | 7.5 |
| M64 | 2 ½” | 5 | 20 | 10 | 25 | 16 | 10 |
| M72 | 3” | 6.2 | 25 | 12.5 | 31 | 20 | 12.5 |
| M76 | 3” | 7.5 | 30 | 12 | 37 | 24 | 12 |
