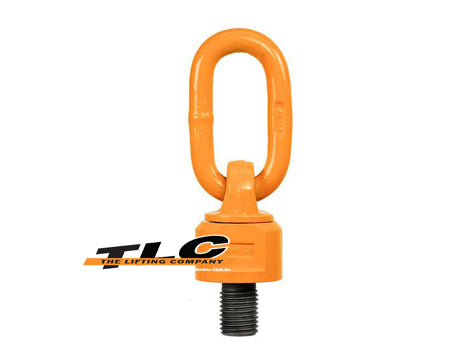

Swivel Lifting Point
Swivel ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component. Used as a swiveling load ring capable of rotating under load due to ball bearing rings ideally suited for dynamic lifting in
any position.
• Made from G80 alloy steel with yellow painted finish, manufactured with an oval link, and available in metric thread sizes from 8mm to 36mm.
• Marked with working load limit in tonne, nominal size in millimetre, quality mark and supplier identification. Proof tested to 1.25 x Working load limit.
• Test certificates are available upon request.
| SIZE(mm) | CODE | WLL(4:1) | Wt.(kg) | DIMENSIONS (mm) | ||||||||
| 90° | 0° | A | B | C | E | F | G | W | T | |||
| 8 | 605108 | 0.3T | 0.6T | 0.41 | 55 | 36 | 15 | 13 | 13 | 51 | 30 | 41 |
| 10 | 605110 | 0.45T | 0.9T | 0.43 | 55 | 36 | 15 | 18 | 13 | 51 | 30 | 41 |
| 12 | 605112 | O.5T | 1T | 0.44 | 55 | 36 | 15 | 18 | 13 | 51 | 30 | 41 |
| 16 | 605116 | 1.12T | 2T | 0.46 | 55 | 36 | 15 | 20 | 13 | 52 | 30 | 42 |
| 20 | 605120 | 2T | 4T | 0.96 | 70 | 49.5 | 19 | 30 | 16 | 68 | 35 | 56 |
| 24 | 605124 | 3.I5T | 6.3T | 1.45 | 85 | 57 | 22 | 30 | 18 | 78 | 40 | 65.5 |
| 30 | 605130 | 5.3T | 10.6T | 2.17 | 85 | 66 | 23.5 | 35 | 20 | 96.5 | 40 | 80.5 |
| 36 | 605136 | 8T | 11.8T | 3.6 | 115 | 80 | 27 | 50 | 22 | 109 | 50 | 89.5 |
| CODE | WORKING LOAD LIMIT FOR SWIVEL EYE BOLT (T) | ||||||||
| LOADING METHOD | 1 | 1 | 2 | 2 | 2 | 3or4 | 3or4 | ||
| INCUNATION | 0° | 90° | 0° | 90° | 0°-48° | 48°-60° | 0°-45° | 45°-60° | ASYMMETRIC |
| LOAD FACTOR | 2.0 | 1.0 | 4.0 | 2.0 | 1.4 | 1.0 | 2.1 | 1.5 | 1.0 |
| SAFETY FACTOR | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 605108 | 0.6 | 0.3 | 1.2 | 0.6 | 0.42 | 0.3 | 0.63 | 0.45 | 0.3 |
| 605110 | 1.0 | 0.5 | 2.0 | 1.0 | 0.7 | 0.5 | 1.05 | 0.75 | 0.5 |
| 605112 | 1.0 | 0.5 | 2.0 | 1.0 | 0.7 | 0.5 | 1.05 | 0.75 | 0.5 |
| 60S116 | 2.24 | 1.12 | 4.48 | 2.24 | 1.57 | 1.12 | 2.35 | 1.68 | 1.12 |
| 605120 | 4.0 | 2.0 | 8.0 | 4.0 | 2.8 | 2.0 | 4.2 | 3.0 | 2.0 |
| 605124 | 6.3 | 3.15 | 12.6 | 6.3 | 4.41 | 3.15 | 6.62 | 4.73 | 3.15 |
| 605130 | 10.6 | 5.3 | 21.2 | 10.6 | 7.42 | 5.3 | 11.13 | 7.95 | 5.3 |
| LOAD FACTOR | 1.6 | 1.0 | 3.2 | 2.0 | 1.4 | 1.0 | 2.1 | 1.5 | 1.0 |
| 60S136 | 12.8 | 8.0 | 25.6 | 16.0 | 11.2 | 8.0 | 16.8 | 12.0 | 8.0 |
| CODE | WORKING LOAD LIMIT FOR SWIVEL EYE BOLT (T) | ||||||||
| LOAD FACTOR | 1.0 | 1.0 | 2.0 | 2.0 | 1.4 | 1.0 | 2.1 | 1.S | 1.0 |
| 605208 | 0.3 | 0.3 | 0.6 | 0.6 | 0.42 | 0.3 | 0.63 | 0.45 | 0.3 |
| 605210 | 0.63 | 0.63 | 1.26 | 1.26 | 0.88 | 0.63 | 1.32 | 0.95 | 0.63 |
| 605212 | 1.0 | 1.0 | 2.0 | 2.0 | 1.4 | 1.0 | 2.1 | 1.5 | 1.0 |
| 605214 | 1.2 | 1.2 | 2.4 | 2.4 | 168 | 1.2 | 2.52 | 1.8 | 1.2 |
| 60S216 | 1.5 | 1.5 | 3.0 | 3.0 | 2.1 | 1.5 | 3.15 | 2.25 | 1.5 |
| 605218 | 2.0 | 2.0 | 4.0 | 4.0 | 2.8 | 20 | 4.2 | 3.0 | 2.0 |
| 605220 | 2.5 | 2.5 | 5.0 | 5.0 | 3.5 | 2.5 | 5.25 | 3.75 | 2.5 |
| 605224 | 4.0 | 4.0 | 8.0 | 8.0 | 5.6 | 4.0 | 8.4 | 6.0 | 4.0 |
| 605227 | 4.0 | 4.0 | 8.0 | 8.0 | 5.6 | 4.0 | 8.4 | 6.0 | 4.0 |
| 605230 | 5.0 | 5.0 | 10.0 | 10.0 | 7.0 | 5.0 | 10.5 | 7.5 | 5.0 |
