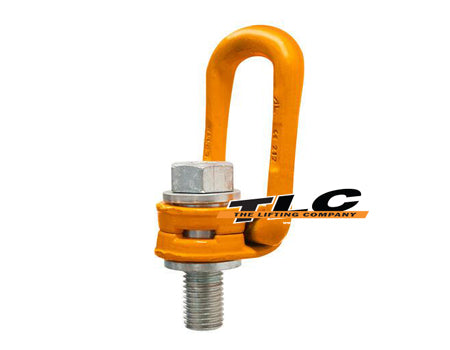

Swivel Eye Bolt Large
Large ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component. Used as a swiveling load ring able to swivel 360° with a pivot of 180°. Made from G80 alloy steel with Orange painted finish,manufactured with an elongated ring in metric thread sizes.
• Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification. Proof tested to 1.25 x working load limit.
• Test certificate available upon request
| SIZE(mm) | CODE | WLL(T) | Wt.(kg) | BL (T) | DIMENSIONS (mm) | |||||||
| ∅ | A | c | D | E | M | L1 | L | |||||
| M8 | 605208 | 0.3 | 0.36 | 1.2 | 14 | 30 | 35 | 55 | 52.5 | 8 | 11 | 46 |
| MI0 | 605210 | 0.63 | 0.38 | 2.52 | 14 | 30 | 35 | 55 | 52.5 | 10 | 16 | 52 |
| M12 | 605212 | 1 | 0.71 | 4 | 18 | 36 | 40 | 68 | 54 | 12 | 18 | 62 |
| M14 | 605214 | 1.22 | 0.72 | 4.8 | 18 | 36 | 40 | 68 | 54 | 14 | 21 | 66 |
| M16 | 605216 | 1.5 | 0.74 | 6 | 18 | 36 | 40 | 68 | 54 | 16 | 24 | 70 |
| M18 | 605218 | 2 | 1.16 | 8 | 16 | 50 | 54 | 83 | 80 | 18 | 26 | 83 |
| M20 | 605220 | 2.5 | 1.21 | 10 | 16 | 50 | 54 | 83 | 80 | 20 | 30 | 88 |
| M24 | 605224 | 4 | 1.37 | 16 | 18 | 50 | 54 | 83 | 94 | 24 | 35 | 95 |
| M27 | 605227 | 4 | 4.18 | 16 | 27 | 68 | 73 | 119 | 106 | 27 | 38 | 120 |
| M30 | 605230 | 5 | 4.40 | 20 | 27 | 68 | 73 | 119 | 106 | 30 | 48 | 132 |
| CODE | WORKING LOAD LIMIT FOR SWIVEL LARCE EYE BOLT (T) | ||||||||
| LOADING METHOD | 1 | 1 | 2 | 2 | 2 | 3or4 | 3or4 | ||
| INCUNATION | 0° | 90° | 0° | 90° | 0°-48° | 48°-60° | 0°-45° | 45°-60° | ASYMMETRIC |
| LOAD FACTOR | 2.0 | 1.0 | 4.0 | 2.0 | 1.4 | 1.0 | 2.1 | 1.5 | 1.0 |
| SAFETY FACTOR | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 605108 | 0.6 | 0.3 | 1.2 | 0.6 | 0.42 | 0.3 | 0.63 | 0.45 | 0.3 |
| 605110 | 1.0 | 0.5 | 2.0 | 1.0 | 0.7 | 0.5 | 1.05 | 0.75 | 0.5 |
| 605112 | 1.0 | 0.5 | 2.0 | 1.0 | 0.7 | 0.5 | 1.05 | 0.75 | 0.5 |
| 60S116 | 2.24 | 1.12 | 4.48 | 2.24 | 1.57 | 1.12 | 2.35 | 1.68 | 1.12 |
| 605120 | 4.0 | 2.0 | 8.0 | 4.0 | 2.8 | 2.0 | 4.2 | 3.0 | 2.0 |
| 605124 | 6.3 | 3.15 | 12.6 | 6.3 | 4.41 | 3.15 | 6.62 | 4.73 | 3.15 |
| 605130 | 10.6 | 5.3 | 21.2 | 10.6 | 7.42 | 5.3 | 11.13 | 7.95 | 5.3 |
| LOAD FACTOR | 1.6 | 1.0 | 3.2 | 2.0 | 1.4 | 1.0 | 2,1 | 1:5 | 1.0 |
| 60S136 | 12.8 | 8.0 | 25.6 | 16.0 | 11.2 | 8.0 | 16.8 | 12.0 | 8.0 |
| CODE | WORKING LOAD LIMIT FOR SWIVEL LARCE EYE BOLT (T) | ||||||||
| LOAD FACTOR | 1.0 | 1.0 | 2.0 | 2.0 | 1.4 | 1.0 | 2.1 | L.S | 1.0 |
| 605208 | 0.3 | 0.3 | 0.6 | 0.6 | 0.42 | 0.3 | 0.63 | 0.45 | 0.3 |
| 605210 | 0.63 | 0.63 | 1.26 | 1.26 | 0.88 | 0.63 | 1.32 | 0.95 | 0.63 |
| 605212 | 1.0 | 1.0 | 2.0 | 2.0 | 1.4 | 1.0 | 2.1 | 1.5 | 1.0 |
| 605214 | 1.2 | 1.2 | 2.4 | 2.4 | 168 | 1.2 | 2.52 | 1.8 | 1.2 |
| 60S216 | 1.5 | 1.5 | 3.0 | 3.0 | 2.1 | 1.5 | 3.15 | 2.25 | 1.5 |
| 605218 | 2.0 | 2.0 | 4.0 | 4.0 | 2.8 | 20 | 4.2 | 3.0 | 2.0 |
| 605220 | 2.5 | 2.5 | 5.0 | 5.0 | 3.5 | 2.5 | 5.25 | 3.75 | 2.5 |
| 605224 | 4.0 | 4.0 | 8.0 | 8.0 | 5.6 | 4.0 | 8.4 | 6.0 | 4.0 |
| 605227 | 4.0 | 4.0 | 8.0 | 8.0 | 5.6 | 4.0 | 8.4 | 6.0 | 4.0 |
| 605230 | 5.0 | 5.0 | 10.0 | 10.0 | 7.0 | 5.0 | 10.5 | 7.5 | 5.0 |
