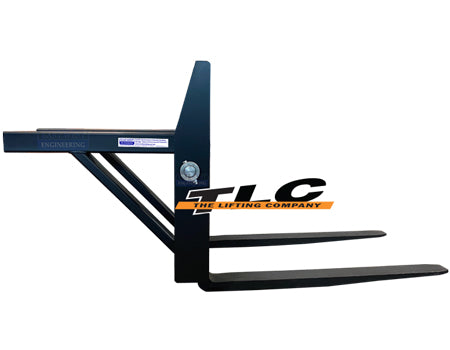

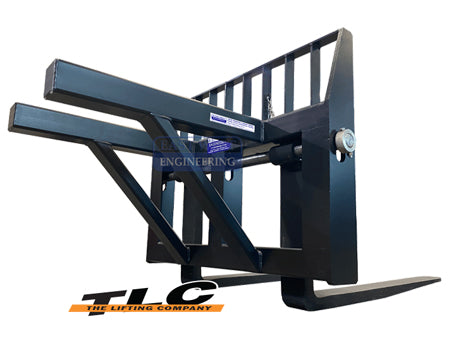

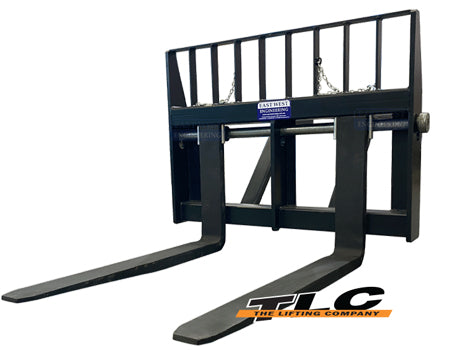

XFC400 Excavator Pallet Forks - Floating
The XFC400 Excavator Pallet Forks is a fork carriage and tine assembly designed for excavators. The fork tines are pin mounted to ‘self level’ when the machine is operating on uneven ground.
FEATURES:
• Suits excavators
• Pin mounted fork tines allow self leveling on uneven ground
• Fitted with 125 x 50mm fork tines with a length of 1200mm
• Tine locking pins are safety chained to framework

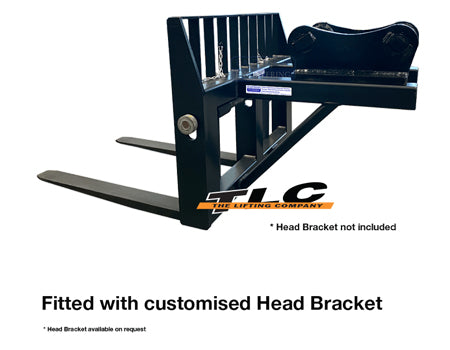

• Head bracket not included can be supplied on request
• Enamel paint finish
SPECIFICATIONS:
 |
Working Load Limit (WLL) | 4000kg |
| Load Centre | 600mm | |
| Carriage Width | 1260mm | |
| Min. Tine Spread (inner to inner) | 30mm | |
| Max. Tine Spread (outer to outer) | 1200mm | |
| Fork Dimensions | 125 x 50 x 1200mm | |
| Unit Weight | 345kg |
 |
Head Bracket NOT included. Head bracket can be supplied on request, measurement required of specific excavator. Check compatibility with your machine manufacturer.
|
