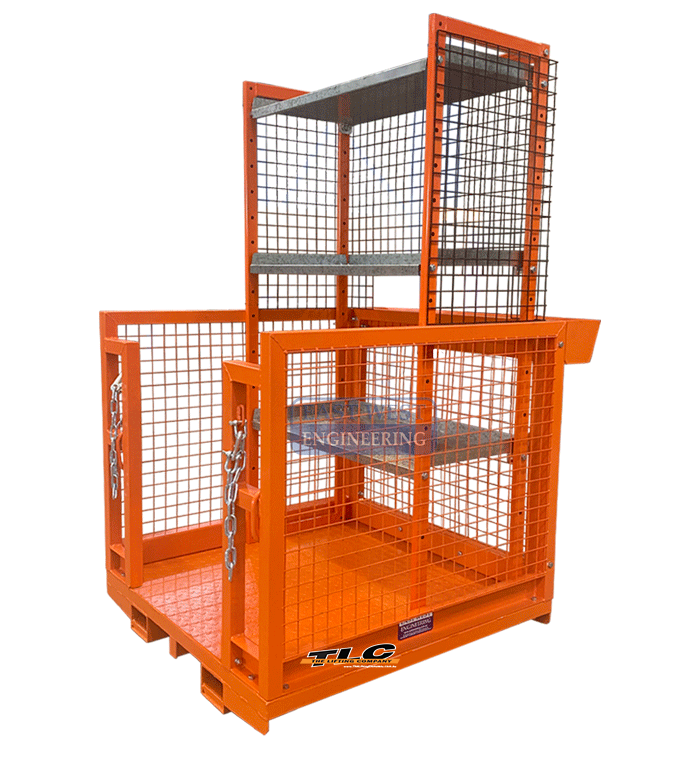

WPOP-SU19 Order Picker Cage
The WPOP-SU19 Order Picker Cage with adjustable Shelves is a warehouse solution designed to assist the safe order picking and packing of goods at height. Manufactured in accordance with Australian Standard AS 5144.3:2019, this safety cage is strictly for use with a dedicated “Order Picker” or “Stock Picker” forklift truck.
FEATURES:
• Wire mesh back and sides
• Adjustable shelf unit offers enclosed space for user and goods
• 3 quick action lift and hinge away shelves allow varying package sizes
• Parcel tray fitted
• Available in 1600mm height shelf unit fitted with 2 shelves on request

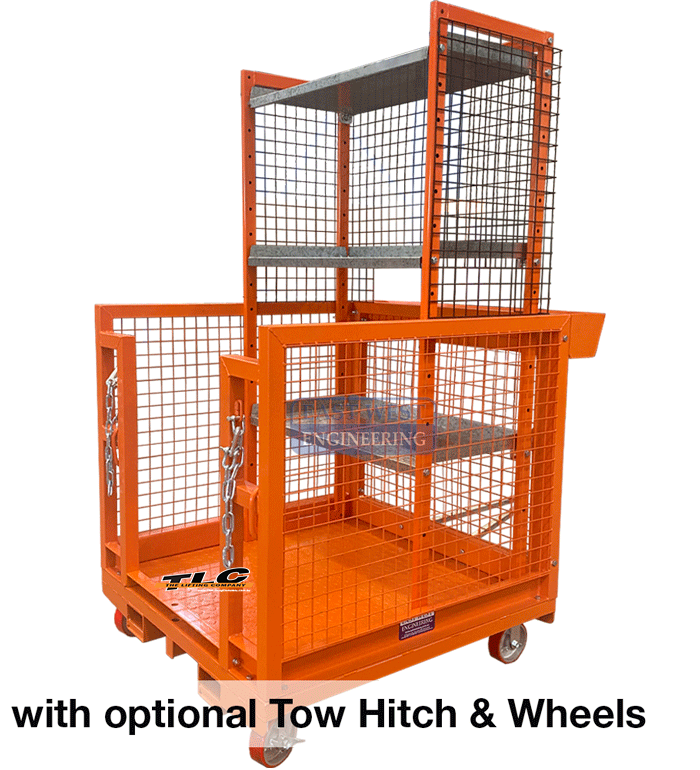

• Optional wheels and tow hitch (WPOP-TH) available for manoeuvrability
• Can be tailor made to suit individual forklifts and applications
• Zinc finish on shelves, Enamel paint finish on frame
 |
Working Load Limit (WLL) | 1000kg |
| Shelf WLL | 200kg / shelf (evenly distributed) | |
| Handrail Height | 1000mm | |
| Shelf Unit Height | 1900mm | |
| Shelves | 3 adjustable lift & hinge away | |
| Shelf Dimensions | 500 x 1050mm | |
| Top of Forks to Floor Height | 60mm / 110mm (tow hitch fitted) | |
| Unit Weight | 250kg | |
| Fork Pocket Size | 140 x 60mm | |
| Fork Pocket Centres | 560mm |
* Standard combination unit specifications
** Available in 2 shelf, 1600mm high unit on request
 |
Under current Australian regulations outward opening gates are no longer permitted on order picker cages. All East West Engineering order picking cages are manufactured in accordance with Australian Standard AS 5144.3:2019.
The load capacity of forklift may restrict the actual load capacity of the Order Picking Cage. |
