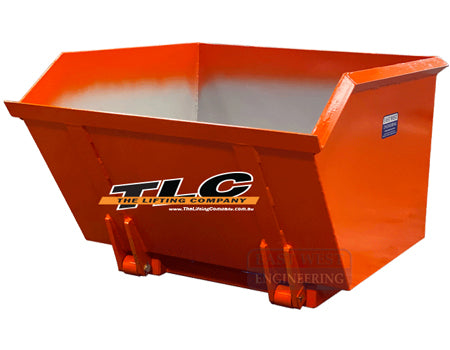

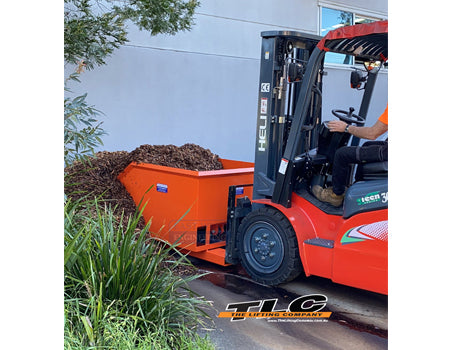

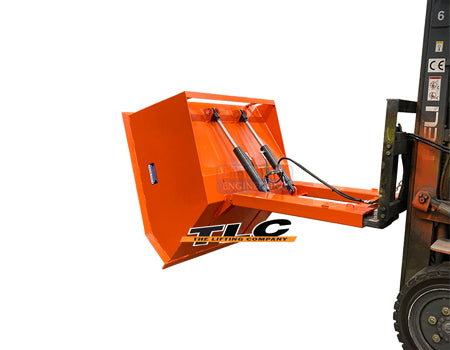

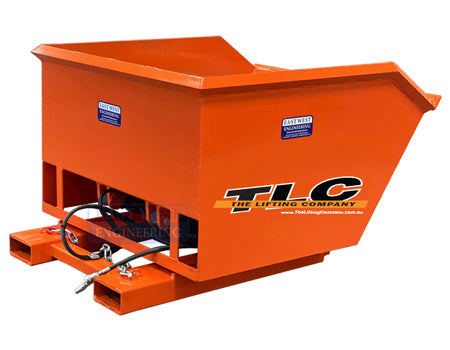

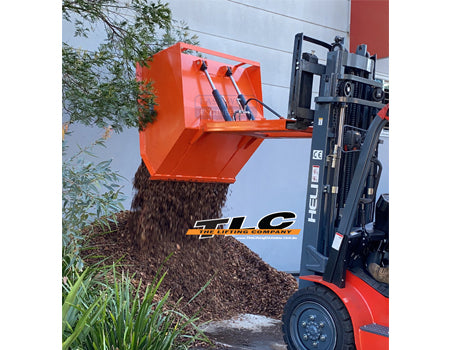

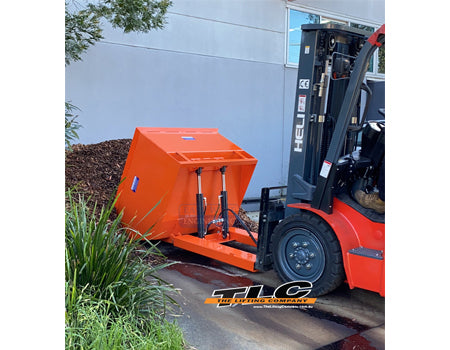

WHTB Hydraulic Tipping & Digging Bin
The WHTB Hydraulic Tipping Bin is designed for use as a hydraulically operated tipping and digging bin suitable for waste handling and transport of loose materials.
FEATURES:
• Allows handling and transport of loose materials
• Hydraulic tipping function operated safely from driver’s seat
• Hydraulics allows fully controlled tipping and self loading operation
• Slip-on base frame and ‘Quick Connect’ hydraulic couplings for fast and easy attachment to a forklift
• Hardened steel wear cutting edge for longevity when used for digging
• Low profile allows use in confined spaces
• Enamel paint finish
SPECIFICATIONS:
|
Load Capacity | 0.75cu.m |
| Working Load Limit (WLL) | 2000kg | |
| O/All Dimensions | 1585 (l) x 1270 (w) x 915mm (h) | |
| Unit Weight | 335kg | |
| Fork Pocket Size | 185 x 65mm | |
| Fork Pocket Centres | 700mm |
