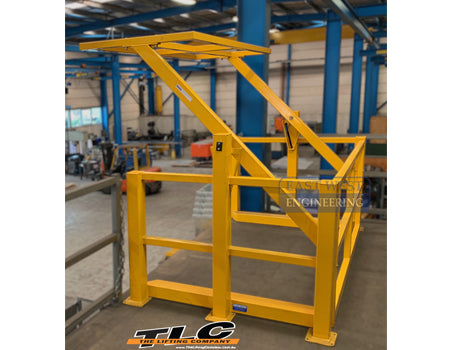

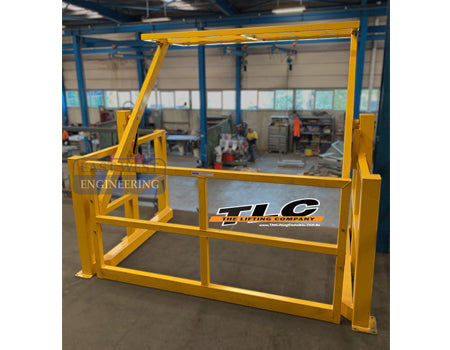

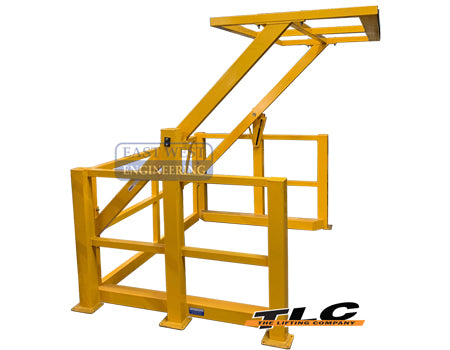

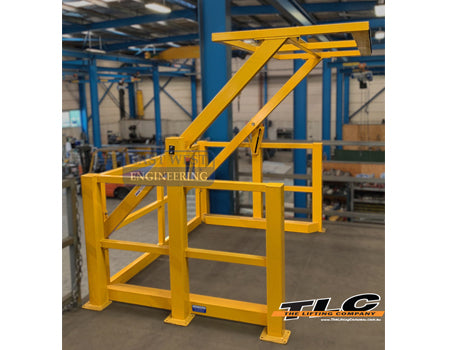

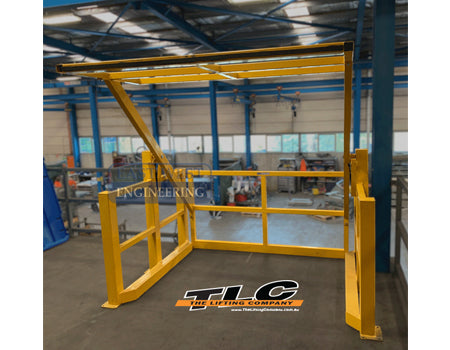

UMZ18 Mezzanine Safety Gate
The UMZ18 Mezzanine Safety Gate provides safe and controlled loading/unloading access to the mezzanine level whilst reducing the risk of injury and falls. The tilting gate design safely closes the pedestrian gate to protect personnel whilst pallets are loaded/unloaded by fork truck, then blocks the exposed edge of the mezzanine level to prevent risk of falling when personnel require loading/unloading access.
FEATURES:
• Allows pallets to move safely between raised storage platforms or mezzanine levels and ground floor
• Protects workers from potentially unsafe areas and risk of fall
• Suits a single pallet up to 1.7m high
• Smooth and safe tilt operation
• Gas struts protected to ensure no accidental damage during loading operation
• Bumper rails guide the pallet/product in position
• Lock off and safety chain provided to lock gate in either position if required
• Strong and sturdy design for optimal safety
• Manufactured to Australian standards and relevant OHS guidelines
• Supplied flatpack
• Safety yellow enamel paint finish
SPECIFICATIONS:
| Inside Clearance | 1800(w) x 1600(d) mm |
| Pallet Height | up to 1700mm |
| Dimensions | 2200(w) x 2050(h) mm |
| Gate Working Envelope | 2400(d) mm |
| Unit Weight | 235kg |
| Finish | Enamel paint |
