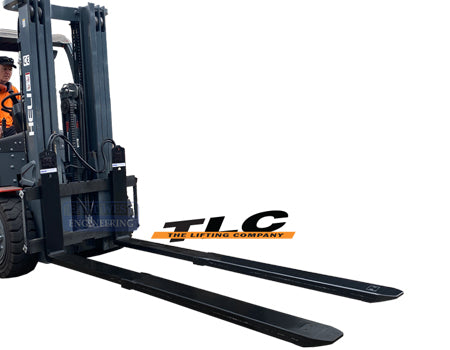

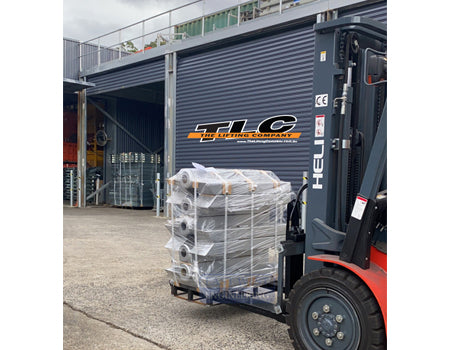

TF Hydraulic TeleFORKS

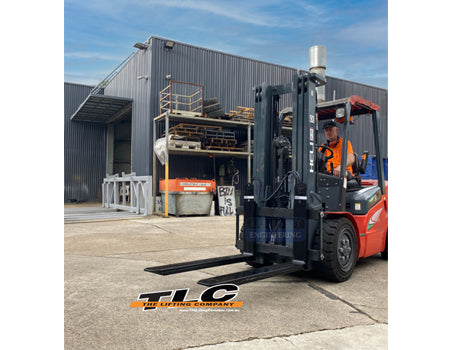

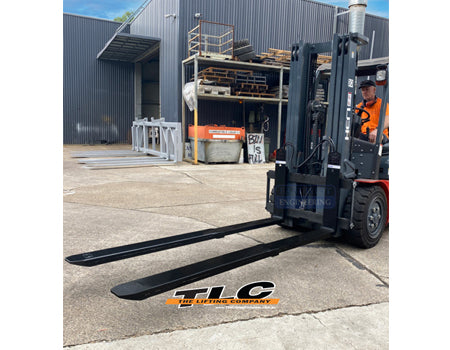

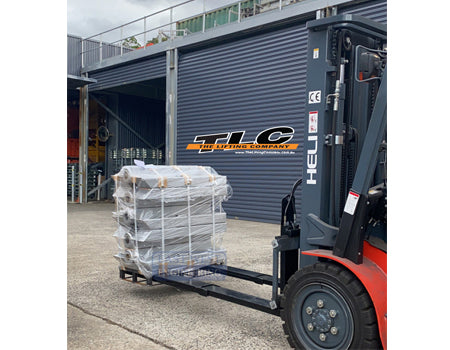

Hydraulic TeleFORKS hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety. One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation..
FEATURES:

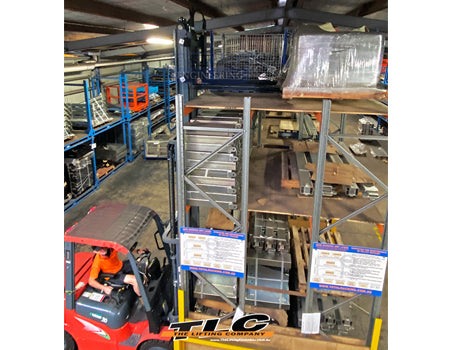

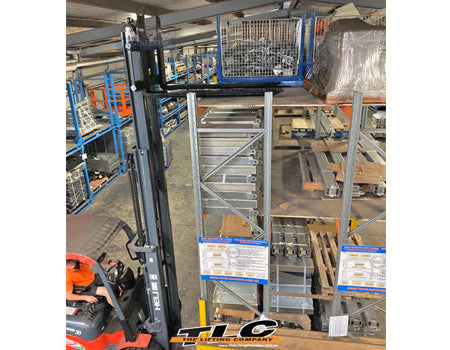

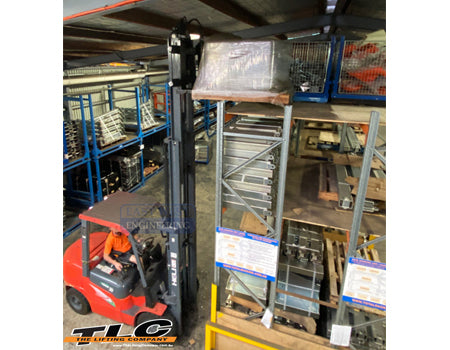

• Allows ‘double deep stacking’, increasing warehouse capacity

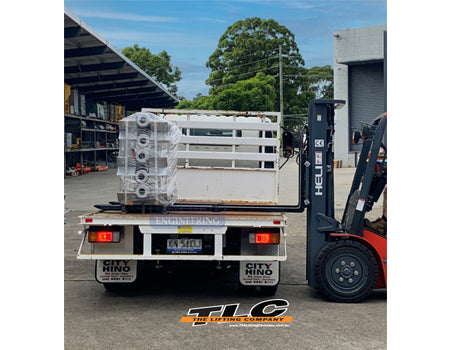

• Allows one-sided loading and unloading, saving time and increasing driver safety
• Phasing cylinders keep fork motion in sync
• Reinforced heel gives less deflection
• Easy connection of the forks onto the fork carrier
• Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
• Requires one additional hydraulic function
• Local technical support and spare parts
• Optional Pallet Stops prevent forks from protruding through to the rear pallet
SPECIFICATIONS:
| Model | Class | WLL @ 600mm LC (kg) | Cylinders per fork | Length (mm) | Extension (mm) | Section w x h (mm) | Lost Load (mm) | Weight per pair (kg) |
| TF2251200-850 | II | 2500 | single | 1200 | 850 | 132 x 57 | 45 | 162 |
| TF2251350-1000 | II | 2500 | single | 1350 | 1000 | 132 x 57 | 45 | 177 |
| TF4251200-850 | II | 2500 | dual | 1200 | 850 | 162 x 57 | 45 | 192 |
| TF4251350-1000 | II | 2500 | dual | 1350 | 1000 | 162x57 | 45 | 212 |
| TF4351200-850 | III | 3500 | dual | 1200 | 850 | 162x57 | 45 | 205 |
| TF4351350-1000 | III | 3500 | dual | 1350 | 1000 | 162 x 57 | 45 | 225 |
