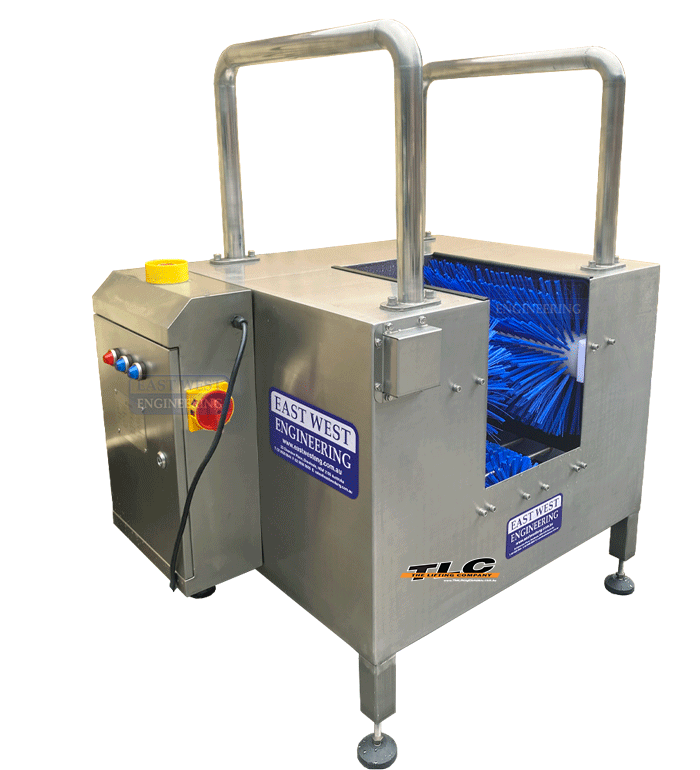

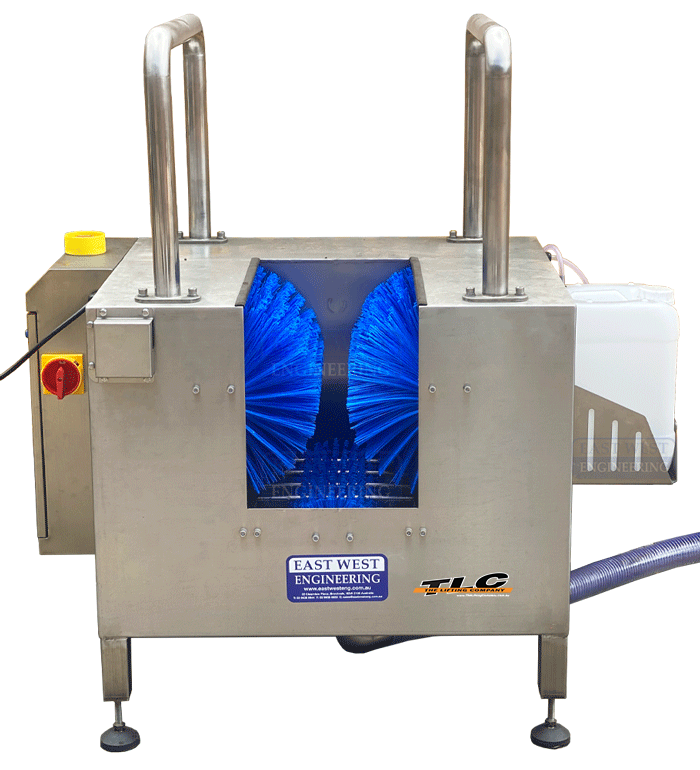

SWHT-5300 Boot Cleaning Station

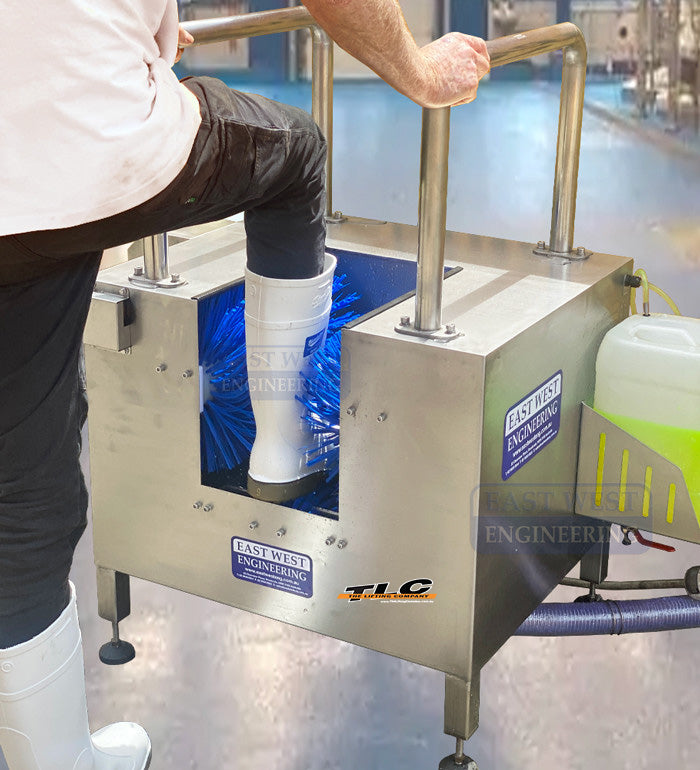

The automatic SWHT-5300 Boot Wash Station is designed to effectively clean the sole, tread and sides of your boots before entering food processing areas where clean footwear is important to reduce risk of contamination. Fit with 3 brushes (1 horizontal, 2 vertical) the boot wash is activated automatically by infrared sensor and includes pressured spray bars that feed water & soap through the rotating brushes for a hands-free clean. Handrails are positioned both sides of the machine for the operator to steady themselves.
FEATURES:
• Automatic shoe & boot cleaner

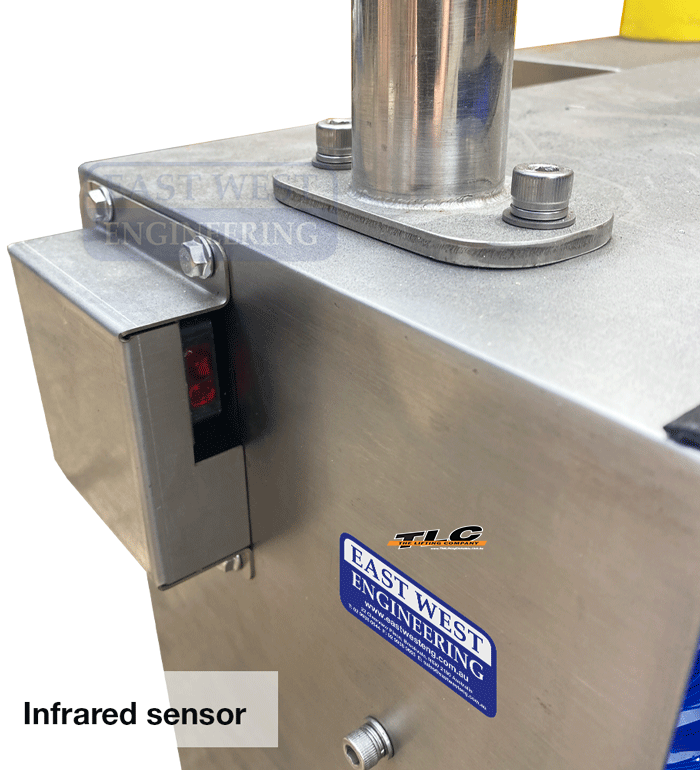

• Sensor activated operation

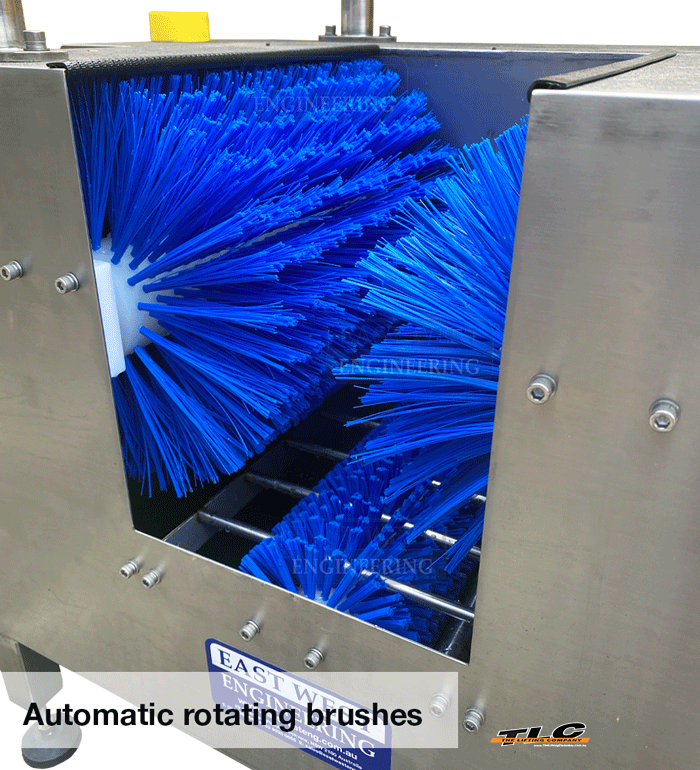

• 3 rotating brushes with course bristles for all-round scrubbing of boots
• Pressured spray bar mounted close to brushes
• Automatic mixing of soap and water
• DN15 water inlet pipe connection
• Waste water is released to floor drain via 50mm dia outlet hose
• Brushes can be easily removed
• Ideal for use in food processing
• Replacement brush set available on request
• Stainless steel (304) construction
 |
Power supply | AC240V, 50Hz,1phase |
| Water inlet pipe connection | DN15 | |
| Water pressure range | 300 - 800kPa (3 - 8 bar) | |
| Water flow rate | 10 liters / minute | |
| Inlet water temperature range | 0 - 60 °C | |
| Drain to sewer outlet | 50mm (inner dia) x 1m |
|
| No. of rotary brushes | 3 | |
| Type of liquid | Liquid soap / cleaner |
|
| Overall Dimensions | 1058(w) x 700(d) x 1080(h)mm | |
| Unit Weight | 60kg | |
| Material | Stainless steel (304) |
 |
Do not use corrosive disinfectants (bleach, chlorine dioxide, sodium hypochlorite, etc.).
Do not wipe the surface of the device with a disinfectant with a concentration higher than >ph11. MADE TO ORDER, contact East West Engineering for leadtimes |
