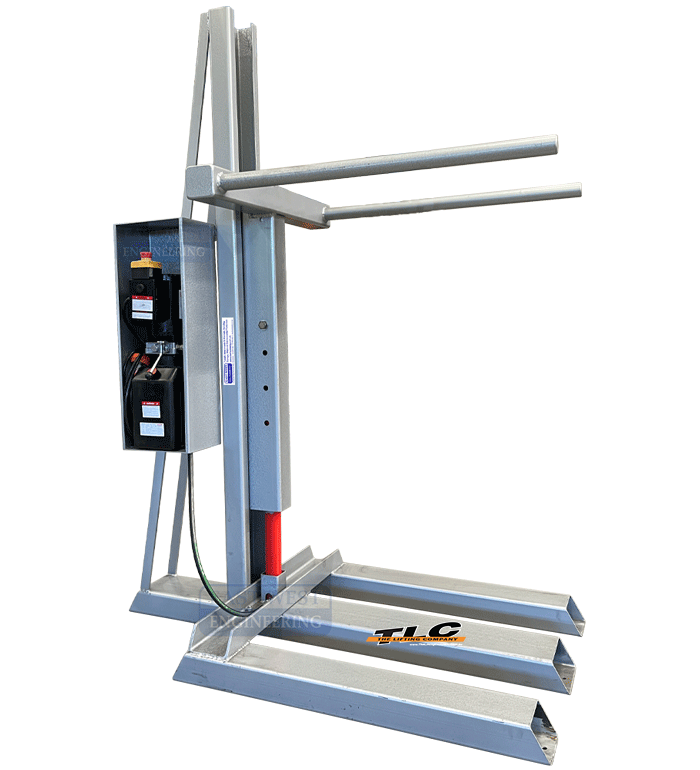

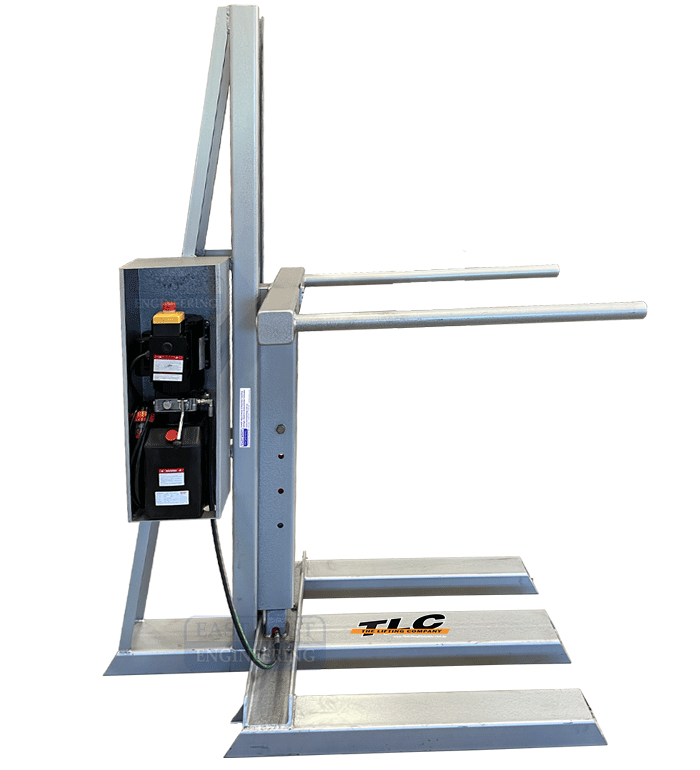

SKF100 Bulk Bag Filling Station

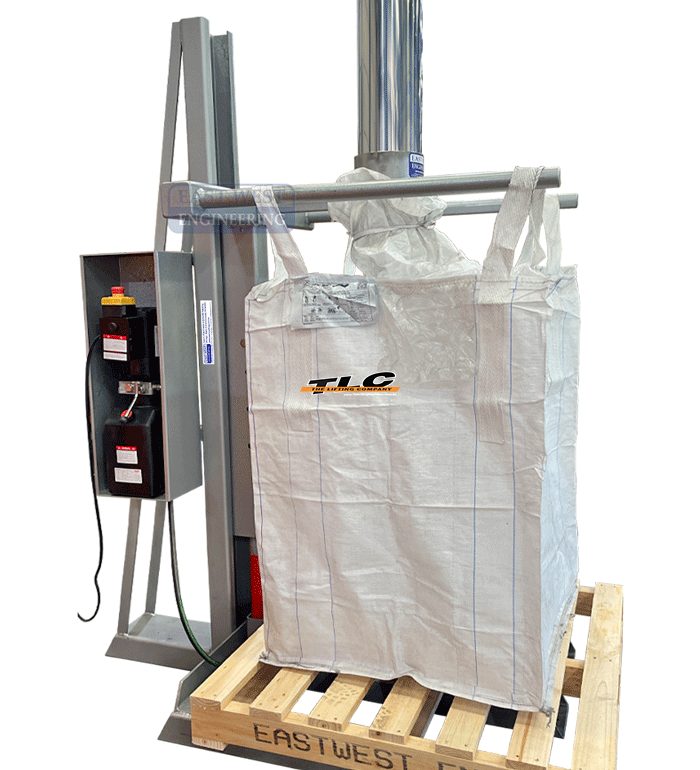

The SKF100 Bulk Bag Filling Station is designed to allow filling of bulk bags, totes and open-top bags with dry, free-flowing materials, removing the need for the operator to hold the bag open or manually fill themselves. The simple design can be used as a stand alone solution or integrated into existing process lines.
FEATURES:
• Allows filling of bulk bags, totes and open-top bags
• Suits free-flowing materials such as plastic granules, grain, fertilizer and sand
• Adjustable for a variety of bag heights
• Hydraulic operated lift allows raising and lowering of bag whilst filling or full
• Bulk bag lifting straps simply slide onto prong for ease of loading

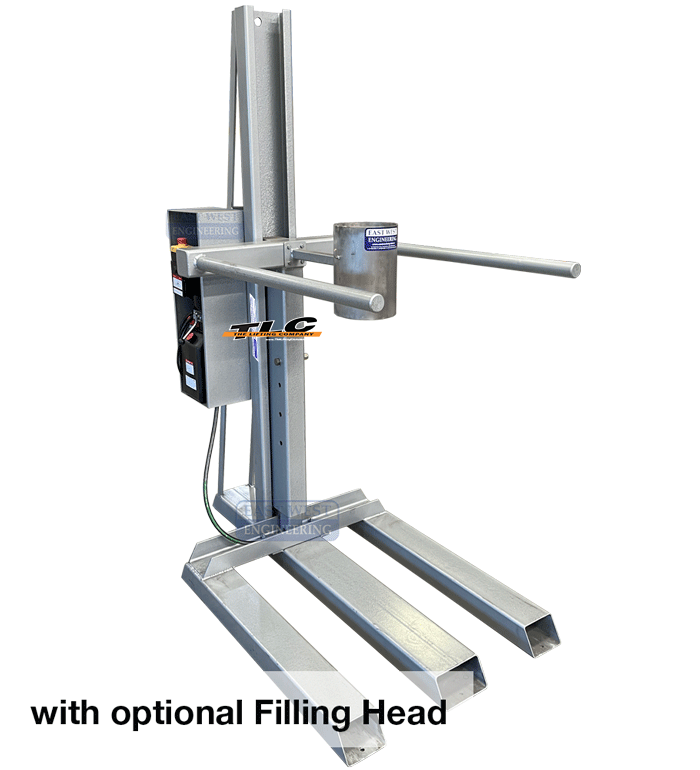

• Optional filling head customised to suit application on request
• Safe removal of full bags by forklift or pallet jack
• Operator can disengage the bulk bag without leaving their seat
• Fork pockets provided for transport purposes only
• Enamel paint finish
| Working Load Limit (WLL) | 1000kg |
| Dimensions | 970(w) x 1700(d) x 2260(h) mm |
| Adjustment Range | 1260 - 2130mm |
| Power Supply | 240V |
| Unit Weight | 240kg |
| Fork Pocket Size | 140 x 85mm |
| Fork Pocket Centres | 820mm |
