QERBS10 Hay Bale Spinner

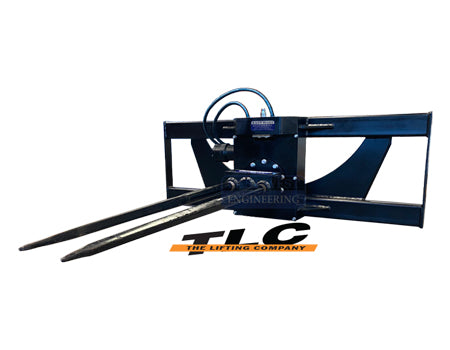

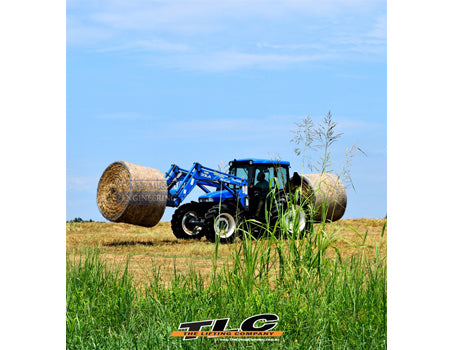

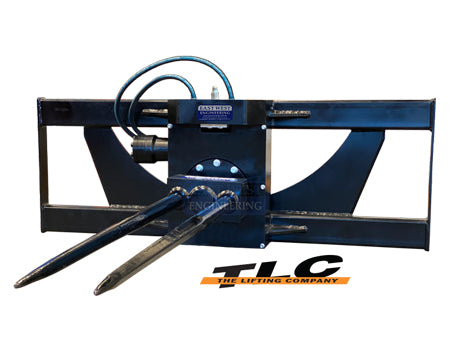

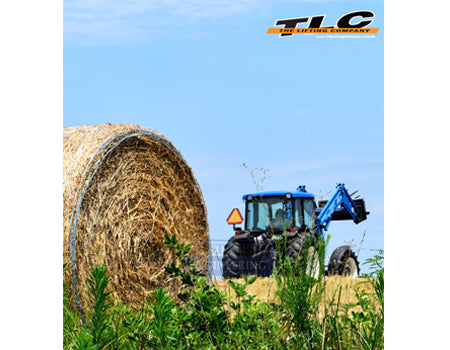

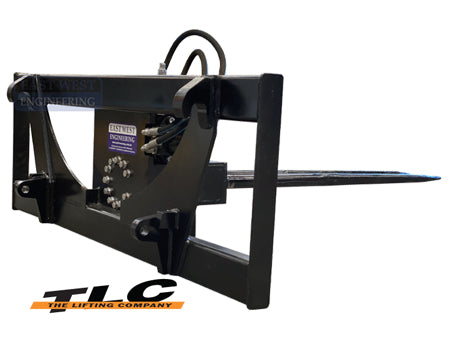

The QERBS10 Hay Bale Spinner is designed to easily lift, transport and hydraulically unroll round bales from the front of your tractor when in reverse or the back when supplied with an optional 3PL to Euro Adaptor.
FEATURES:
• Allows controlled unrolling of round bales from a tractor
• Ideal for picking up and moving hay bales around with minimal effort
• Hydraulic operation provides better operator control
• Rotates in both directions for easy feeding
• Reduces hay waste by only unrolling what is needed
• Comes fitted with Euro 8 hitch lugs for easy connection
• 2 removable bale spears supplied

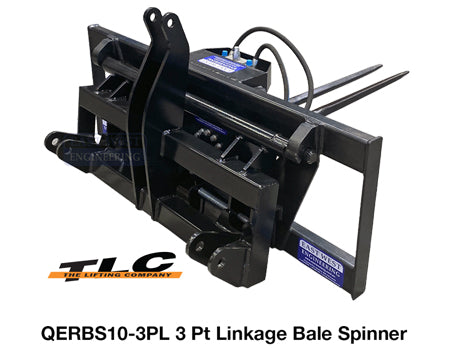

• Model QERBS10-3PL includes QTPE20 Adaptor for optional fitment to a tractor's 3 point linkage
• QERBS10-3PL adaptor can be easily removed to interchange between 3PL and Euro
• Spears taper for easier penetration and removal from the bales
• Made of high tensile strength steel for strength and durability
SPECIFICATIONS:
| Working Load Limit (WLL) | 1000kg |
| Carriage Width | 1415mm |
| Spear Dimensions | Ø45 x 1100mm clear length |
| Sleeve Size | Conus II |
| Rotating Speed | 7rpm |
| Hydraulic Flow | 53L/min |
| QERBS10 Unit Weight | 190kg |
| QERBS10-3PL Unit Weight | 273kg |
