HBF Hopper Bin - Slide Valve

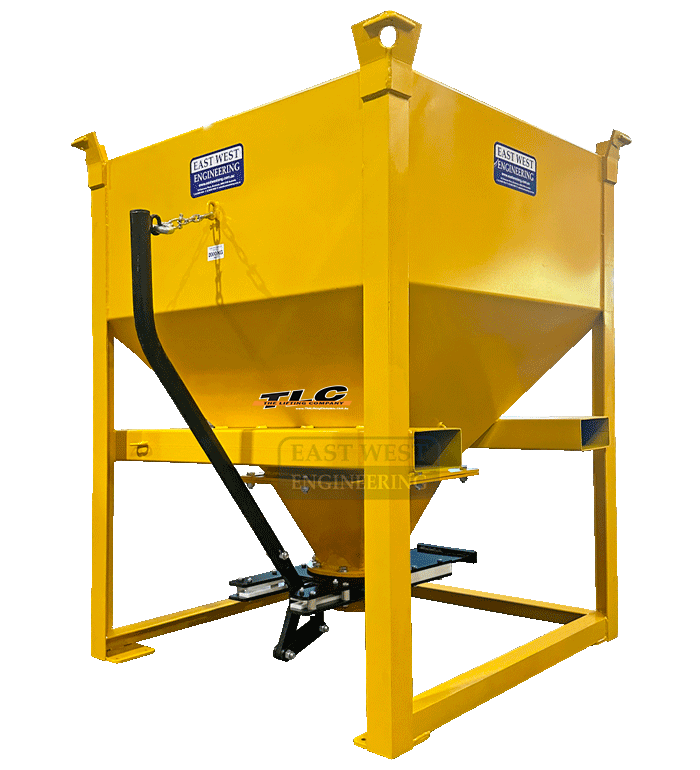

The HBF (SV) Hopper Bin is designed for the storage and dispensing of bulk materials with an easy to operate slide valve opening for precise control of material flow.
FEATURES:
• Ideal for handling granular products such as aggregate, sand, cement or grain up to 2T WLL

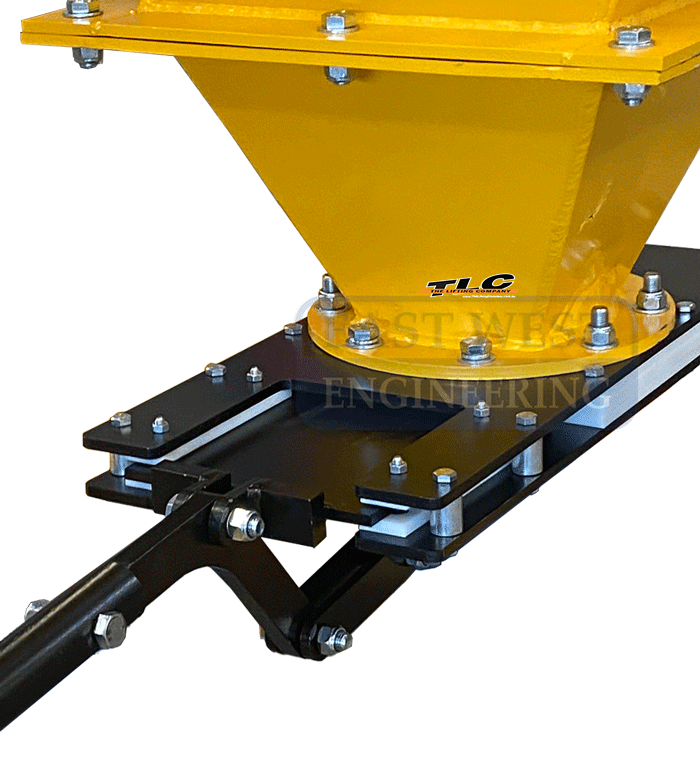

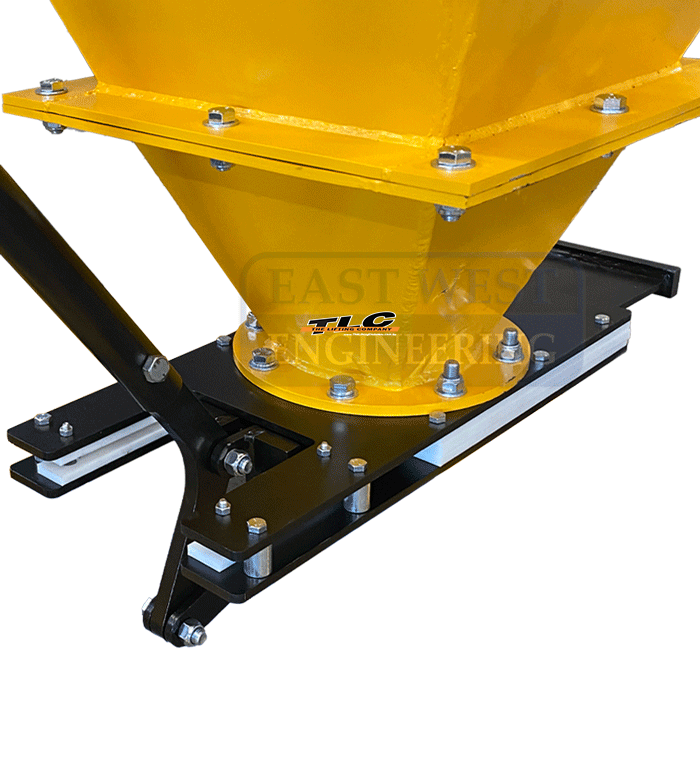

• 200mm dia slide valve for precise control over the material flow
• Crane lugs fitted for transporting fully loaded unit by overhead crane

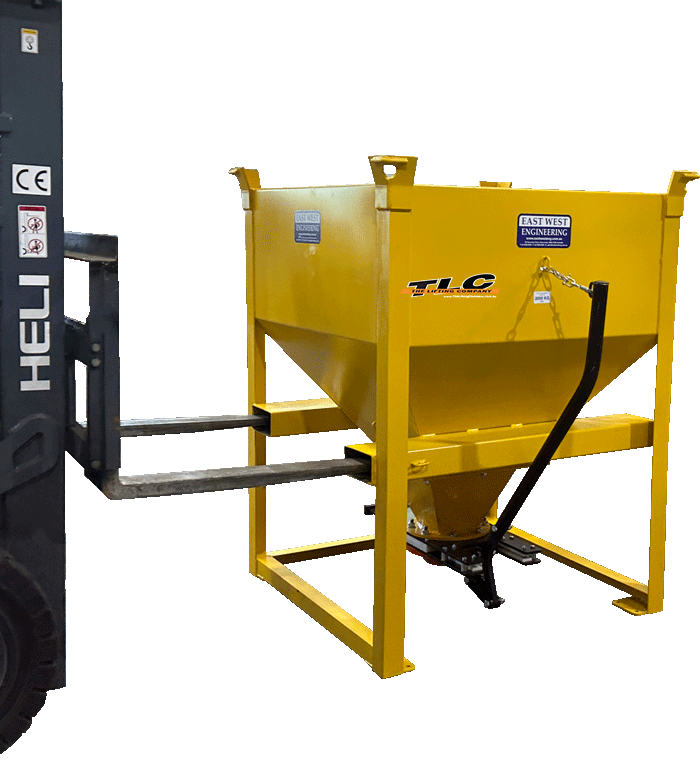

• Fitted with fork pockets to allow onsite transport by forklift

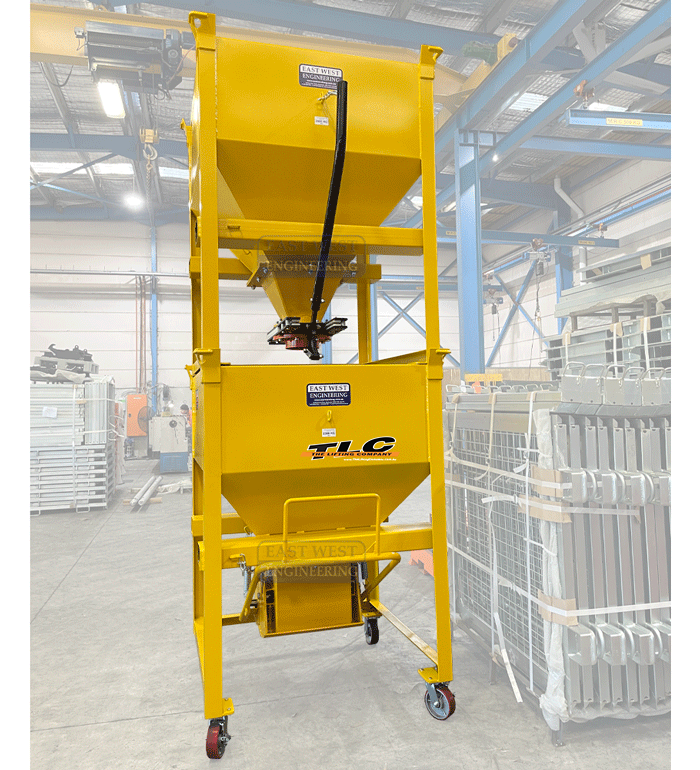

• Stackable (2 high) in its standard configuration

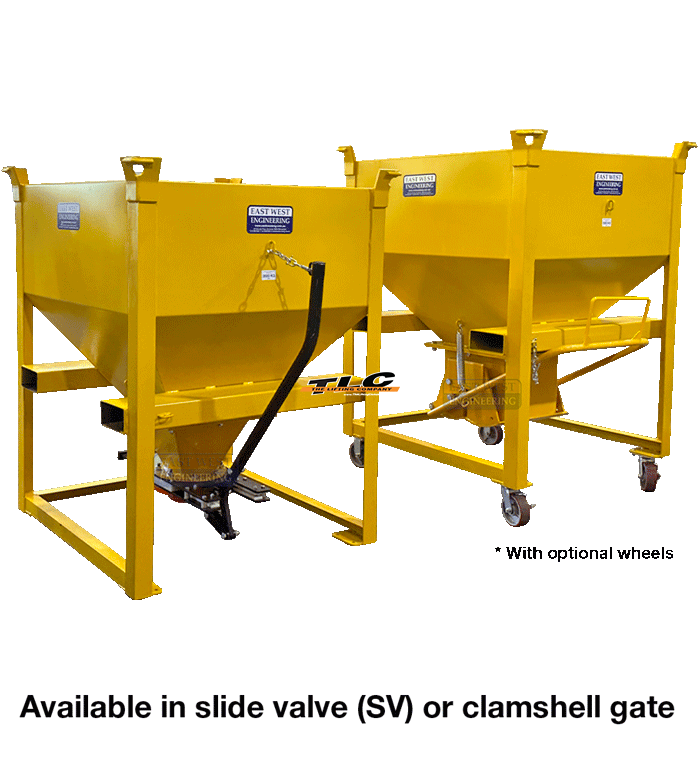

• Also available in fast acting and tightly closing clamshell gate (HBF) for positive shut-off of material flow
• Enamel paint finish
OPTIONAL ACCESSORIES:
• Wheel kit (150mm DIA PU/CI castors - swivel with brakes)

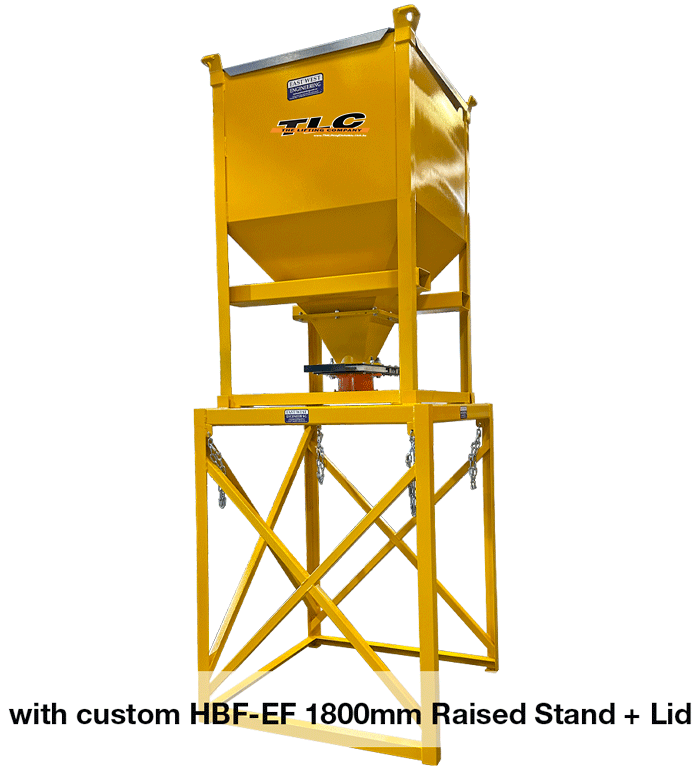

• Raised stand (HBF-EF), 750mm height or can be made to suit requirements
• Layflat hose adaptor 200mm OD (CKSV10-09) + 2m hose

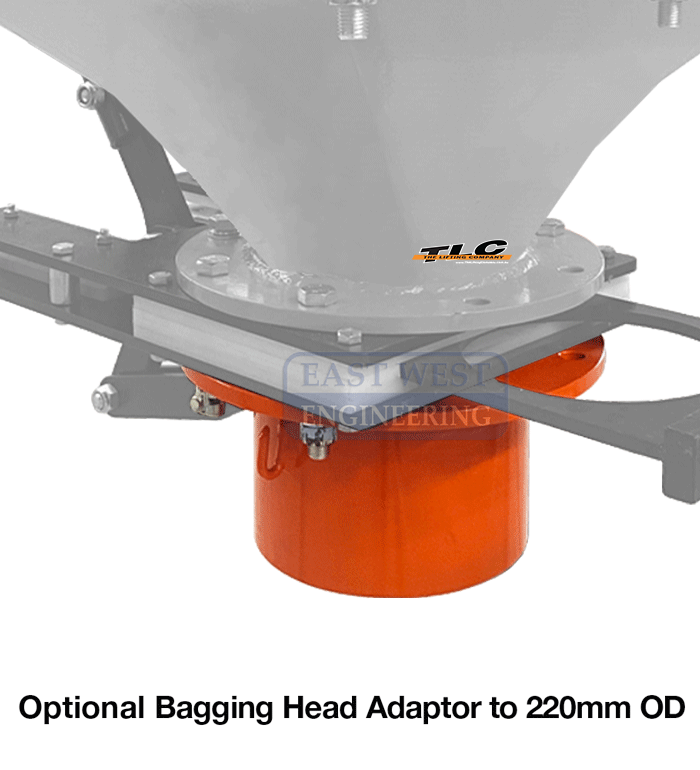

• Bagging head adaptor 220mm OD (SP-0561)

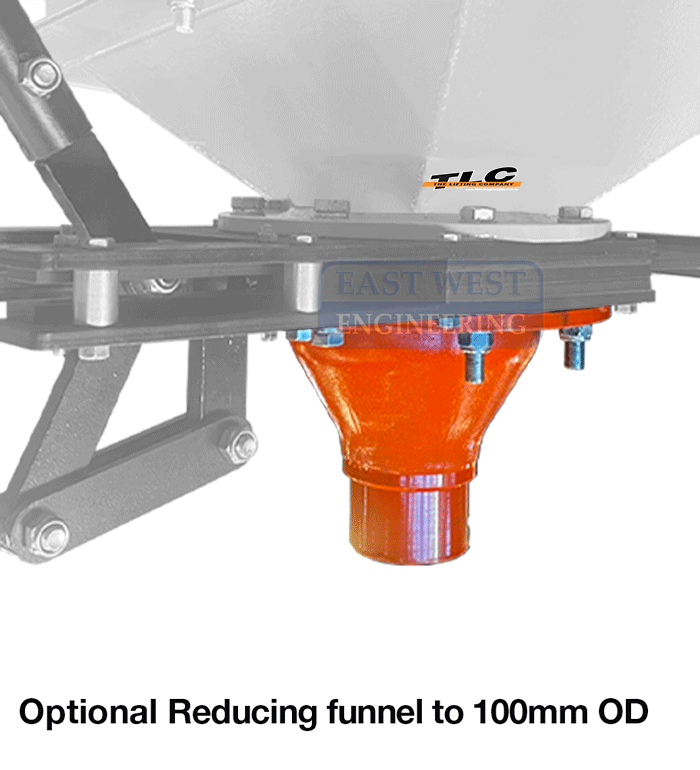

• Reducing funnel to 100mm OD (SP-0562)
• Vacuum adaptor (SP-0563)
| Model |
Working Load Limit (kg) |
Capacity (cu.m) |
Dimensions (mm) |
Fill Height (mm) |
Fork Pocket Size (mm) |
Fork Pocket Centres (mm) |
Unit Weight (kg) |
| HBF10-SV | 2000 | 1.0 | 1290 x 1290 x 1655 | 1575 | 185 x 85 | 850 | 278 |
 |
Due to transport safety requirements wheels are supplied for fitment onsite, not pre-fitted. Optional layflat hose adaptor, bagging head adaptor and reducing funnel are designed for easy fitment to the slide valve.
|
