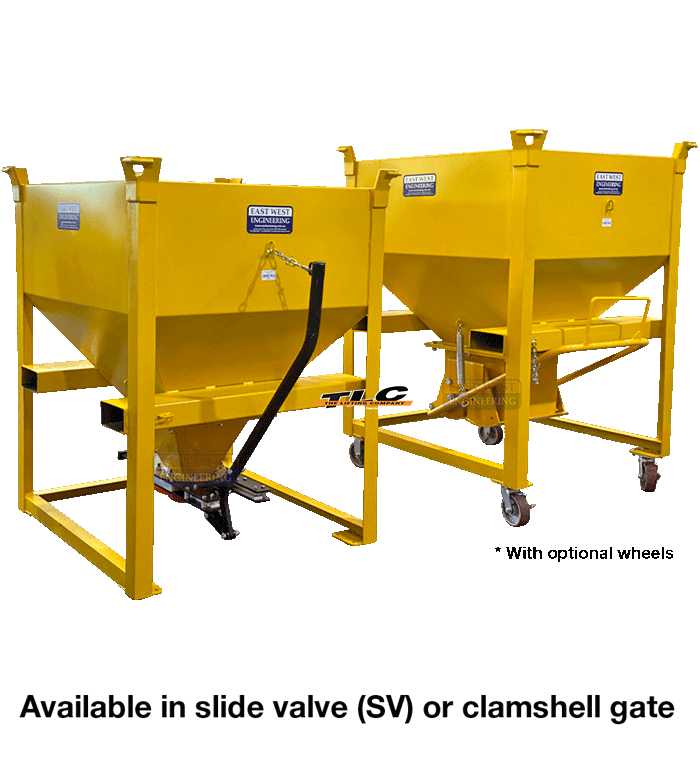

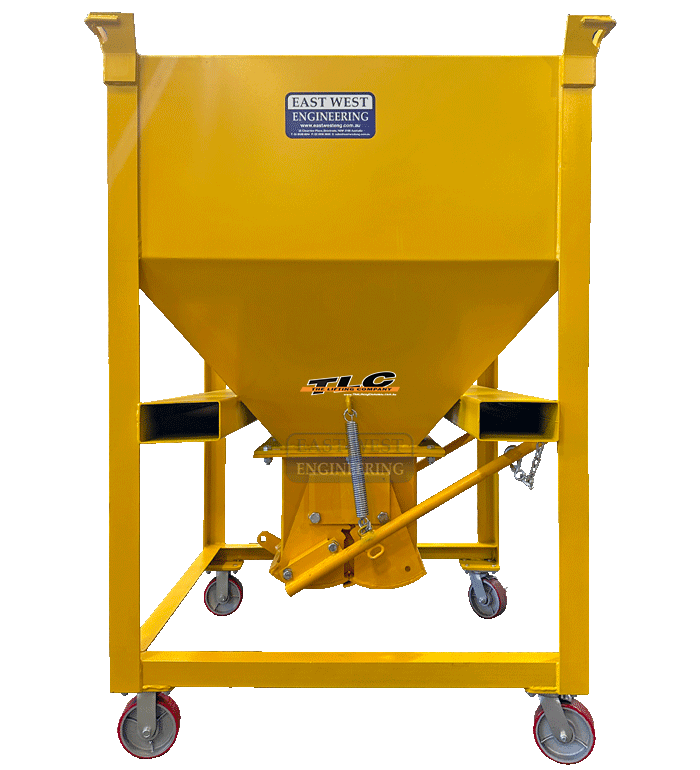

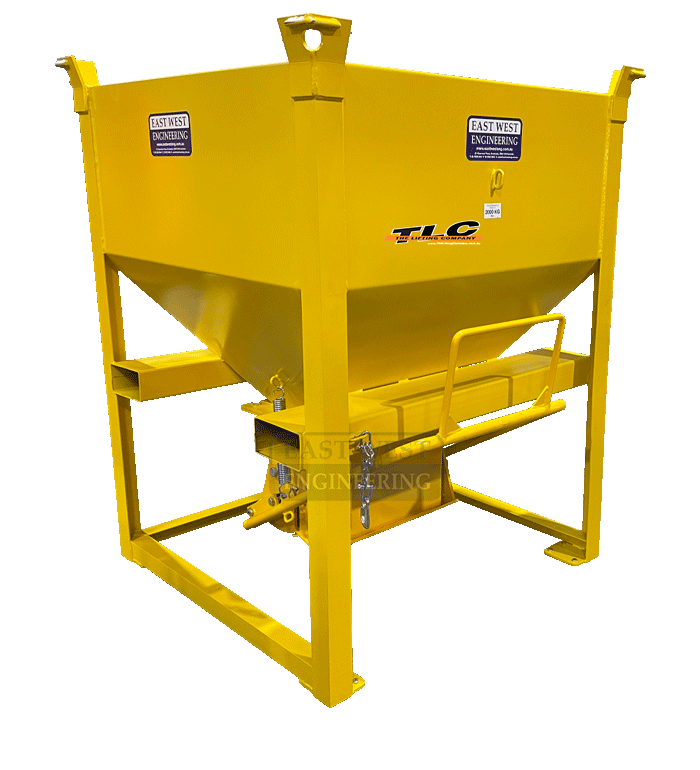

HBF Hopper Bin - Clamshell
The HBF Hopper Bin is designed for the storage and dispensing of bulk materials with a clamshell opening mechanism for maximum material flow.
FEATURES:
• Ideal for handling granular products such as aggregate, sand, cement or grain up to 2T WLL

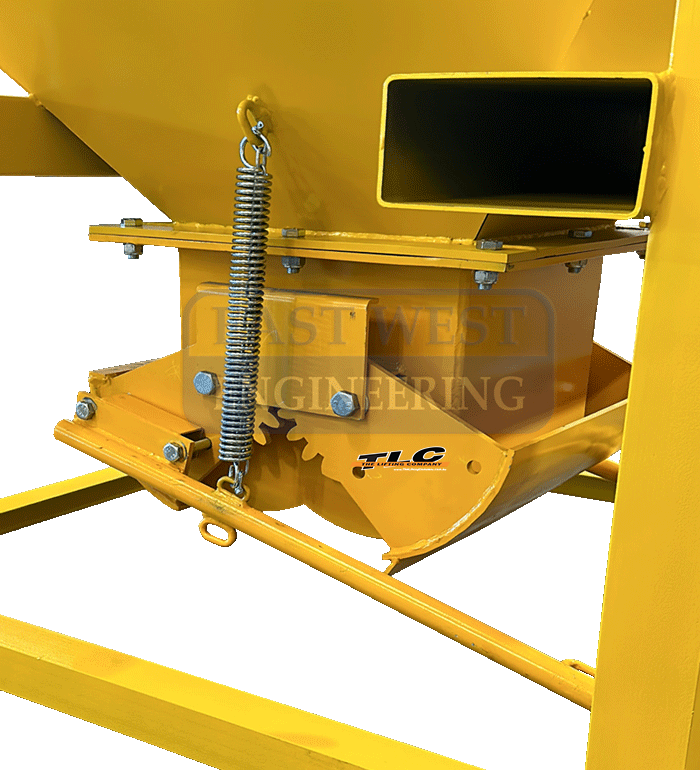

• Easy to open, fast acting and tightly closing clamshell gate for positive shut-off of material flow
• Crane lugs fitted for transporting fully loaded unit by overhead crane
• Fitted with fork pockets to allow onsite transport by forklift

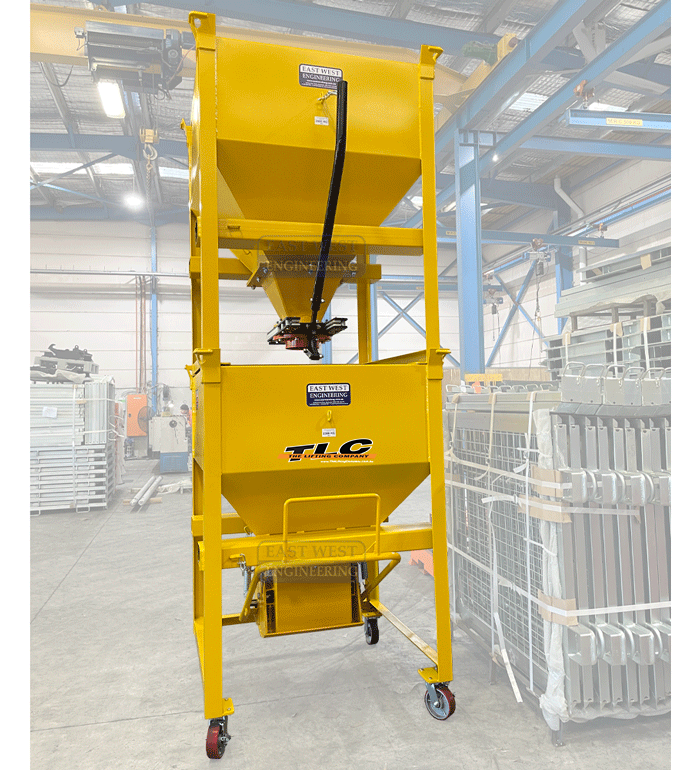

• Stackable (2 high) in its standard configuration
• Also available with 200mm dia slide valve (SV) for precise control over the material flow

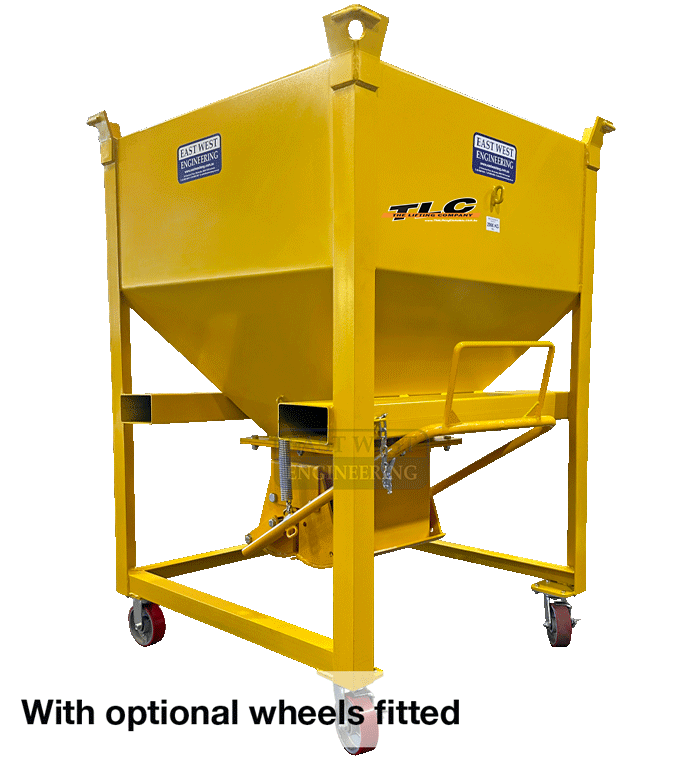

• Optional wheel kit available on request
• Enamel paint finish
| Model |
Working Load Limit (kg) |
Capacity (cu.m) |
Dimensions (mm) |
Fill Height (mm) |
Fork Pocket Size (mm) |
Fork Pocket Centres (mm) |
Unit Weight (kg) |
| HBF10 | 2000 | 1.0 | 1290 x 1290 x 1655 | 1575 | 185 x 85 | 850 | 342 |
 |
Due to transport safety requirements wheels are no longer pre-fitted. Included wheel kit is supplied for fitment onsite, not pre-fitted.
|
