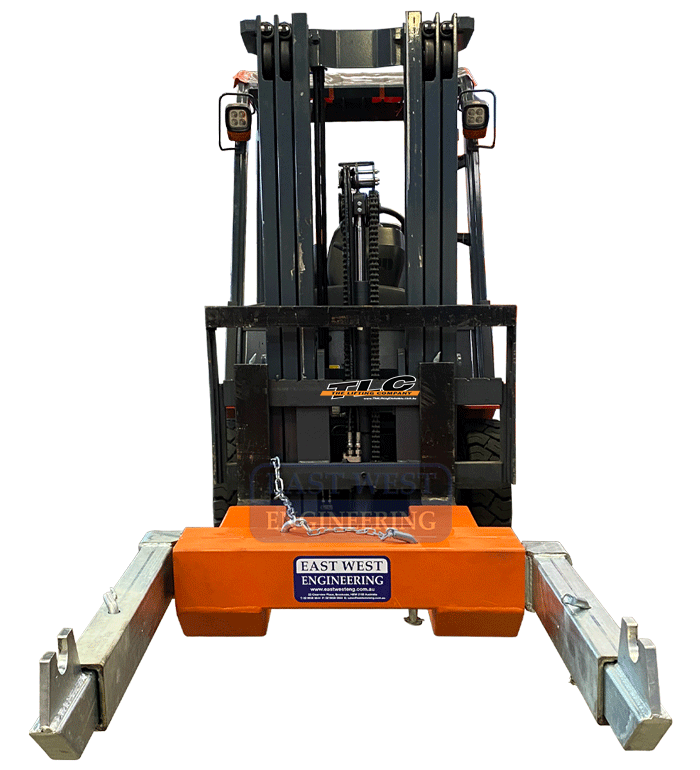

FDEX Cable Drum Lifter

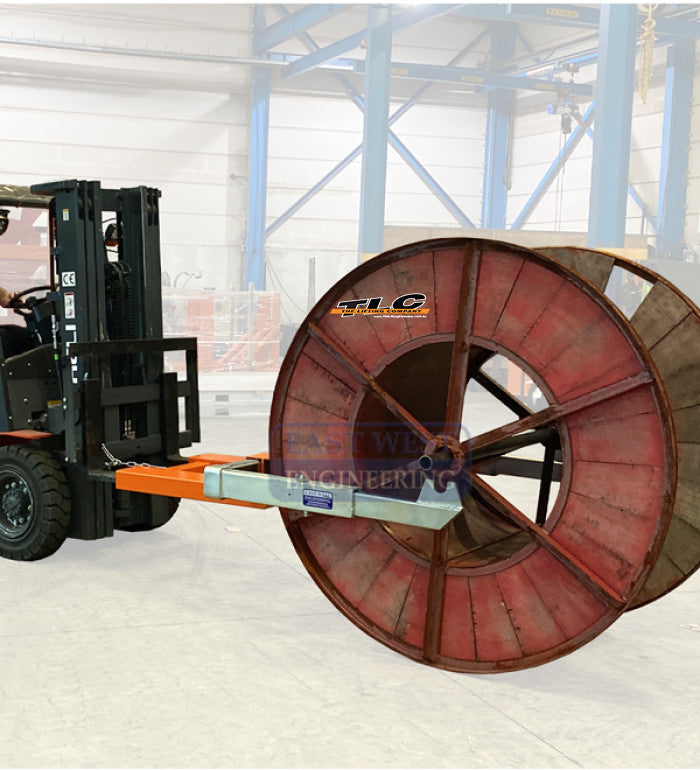

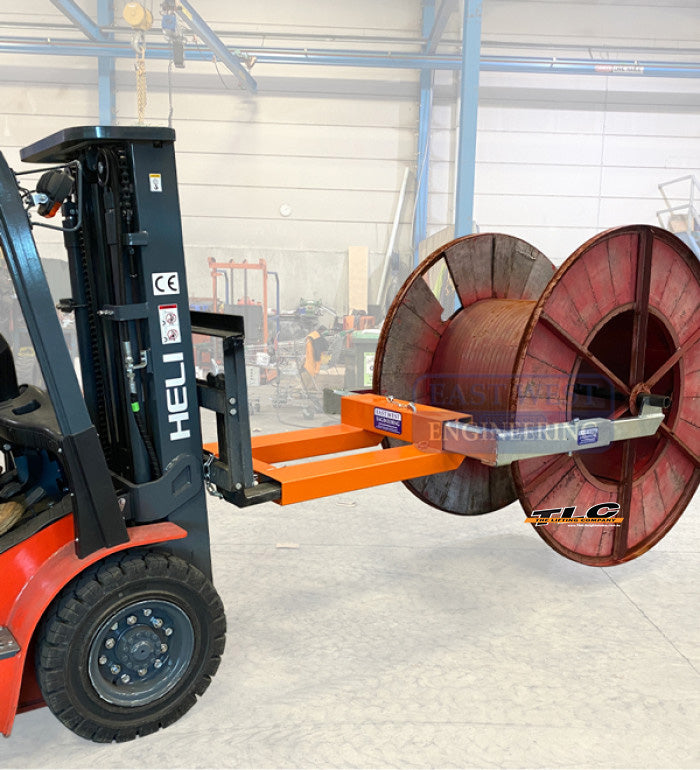

The FDEX Extendable Cable Drum Lifter is designed with adjustable arms to safely lift and transport cable drums of varying size by forklift.
FEATURES:
• Ideal for heavy or large diameter cable spools
• Arms adjustable to 3 positions wide and 2 long to suit varying reel sizes
• Slip-on attachment and safety chain allows quick connection to a forklift
• 1T and 2T capacity models available
• Enamel paint finish frame, zinc finish telescopic arm
|
Model |
WLL (kg) |
Load Centre (mm) |
Maximum Spindle DIA (mm) |
Maximum Reel DIA (mm) |
Inside Clearance per position(mm) |
Unit Weight (kg) |
|||
| Retracted | Extended | 1 | 2 | 3 | |||||
| FDEX100 | 1000 | 1760 | 2085 | 60 | 2000 | 850 | 1330 | 1810 | 175 |
| FDEX200 | 2000 | 2120 | 2470 | 78 | 2500 | 870 | 1350 | 1830 | 350 |
