FDCS Cable Drum Slippers

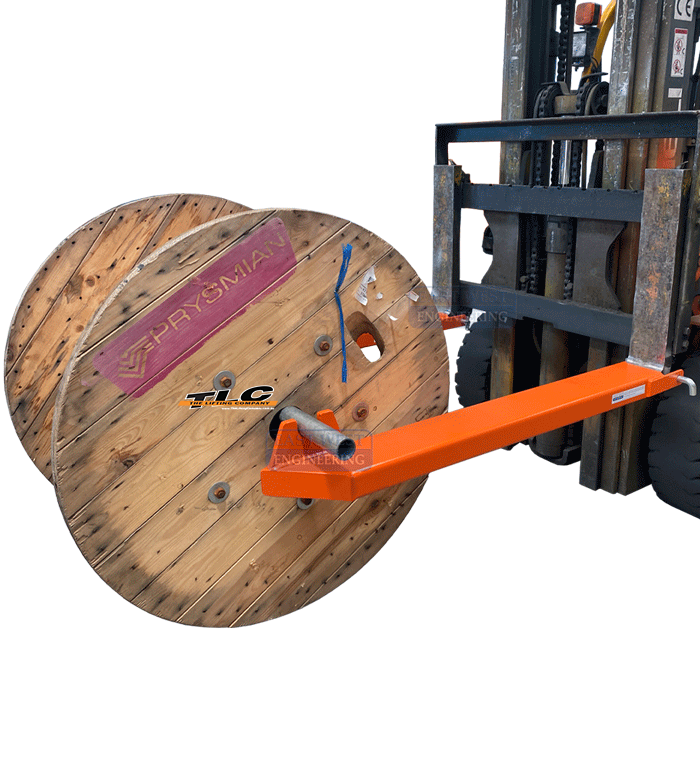

The FDCS Cable Drum Slippers are designed to safely lift, transport cable drums by forklift.
FEATURES:

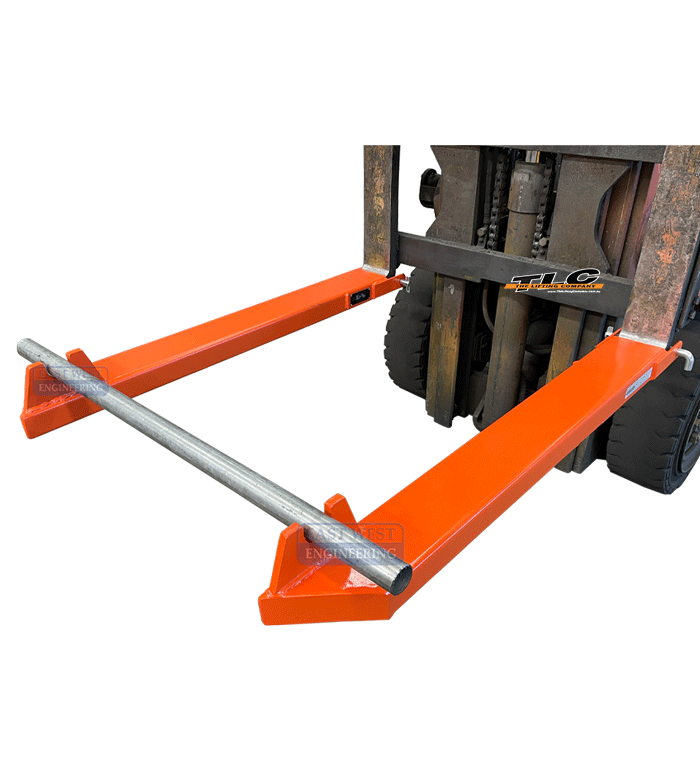

• Cradle to suit up to 50mm diameter spindles
• Supplied with spindle (1200 long x 48mm DIA)
• Supplied with toggle locking pins for securing to forks
• Supplied as a pair
• 3 models available to suit fork arm size and capacity
• Ideal for heavy or large diameter cable spools
• Enamel paint finish
| Model |
WLL (kg) |
Load Centre (mm) |
Length (mm) |
Max. Tine Size (mm) |
Max. Tine Length (mm) |
Weight / pair (kg) |
| FDCS1-130 | 1000 | 1200 | 1300 | 100 x 45 | 1220 | 34 |
| FDCS2-130 | 1500 | 1200 | 1300 | 130 x 50 | 1220 | 50 |
| FDCS3-130 | 2000 | 1200 | 1300 | 155 x 55 | 1220 | 60 |
* Custom length and pocket size available on request
NOTE: This unit is made to order and non returnable. Please ensure fork tines are measured to ensure correct fit.
The FDCS1 suits a maximum 100x45mm fork size.
For fork sizes above this (even if you have a 2.5T forklift), you must order the next size up.
For example a 2.5T Forklift fitted with 125x45mm fork size suits the FDCS2.
If in doubt, please call East West Engineering for advice on 1800 061 998.
 |
Fork tines must be measured to ensure correct fit Slippers used for general usage should be no longer than 167% of the supporting tine length. If the slippers are longer than 167%, then the usage of those slippers shall be restricted to their specified application. All slippers are sold as a pair. |
