FBS Bale Spear

No review yet. Write Review

$0.00

Description

The FBS Bale Spear is designed for the safe and easy handling of bales.

FEATURES:
• Ideal for picking up hay bales (round and square) with minimal effort
• Tapered from front to back for easier penetration and removal from the bales

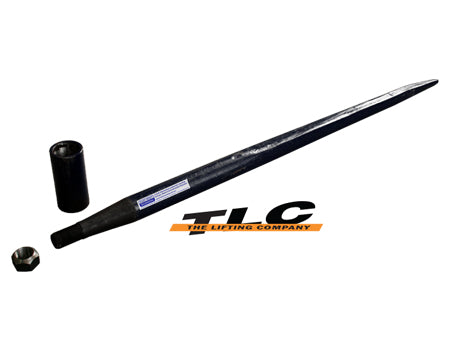

• Supplied with Conus sleeve and nut
• Available in model with fork shank (FLF) for quick connection to a carriage
• Made of high tensile strength steel for durability

SPECIFICATIONS:

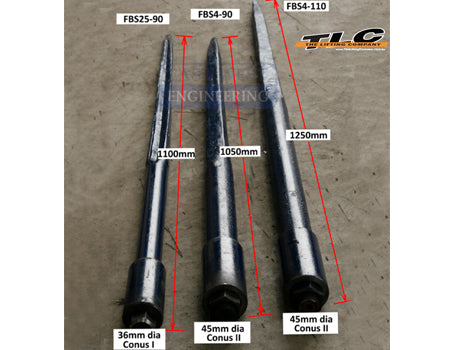

Model	Tensile Strength @ Load Centre (kg @ mm)	Overall Length (mm)	Clear Tine Length (mm)	Tine Diameter (mm)	Sleeve Size	Unit Weight (kg)
FBS25-90	750 @ 500	1100	970	36	Conus I	6
FBS4-90	1200 @ 500	1050	900	45	Conus II	10
FBS4-110	1200 @ 500	1250	1100	45	Conus II	13
