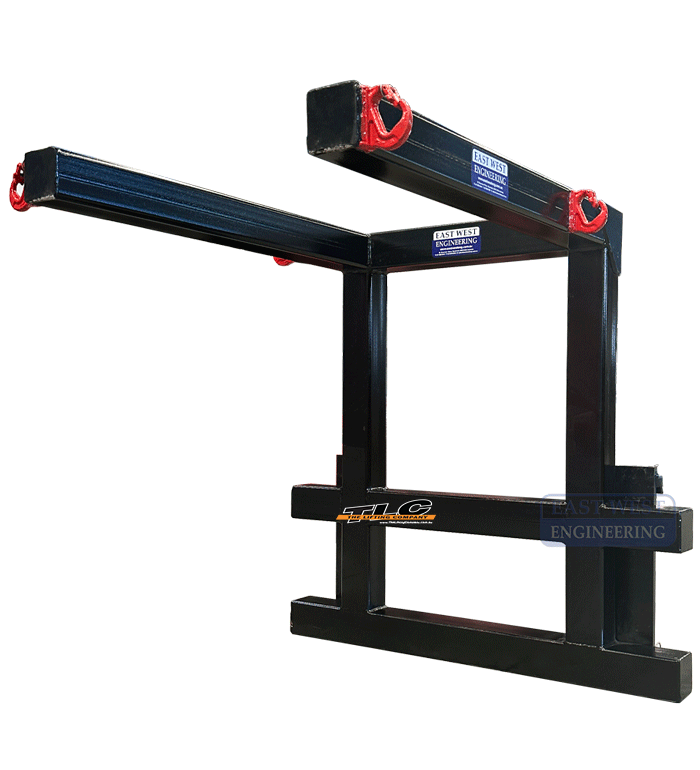

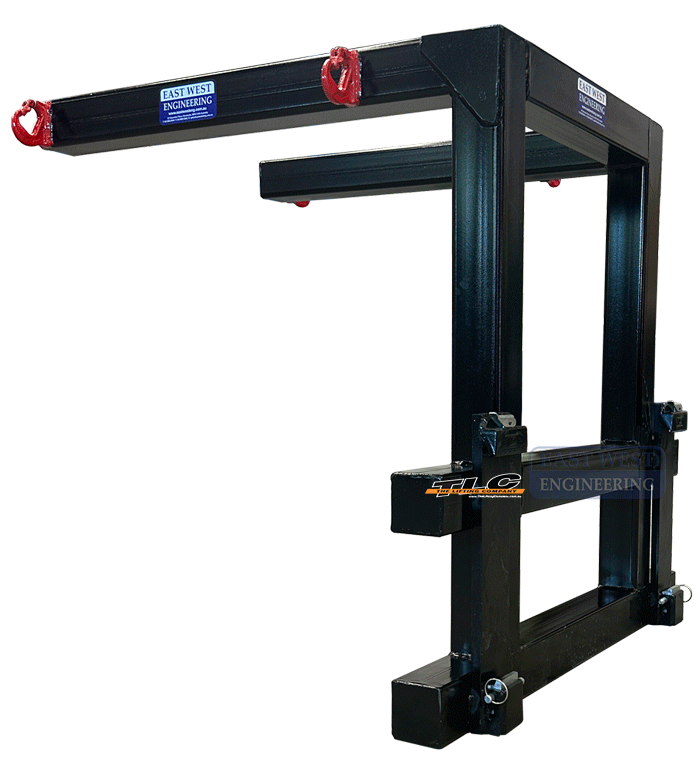

FBN15-QR Bulk Bag Lifter - Carriage mount

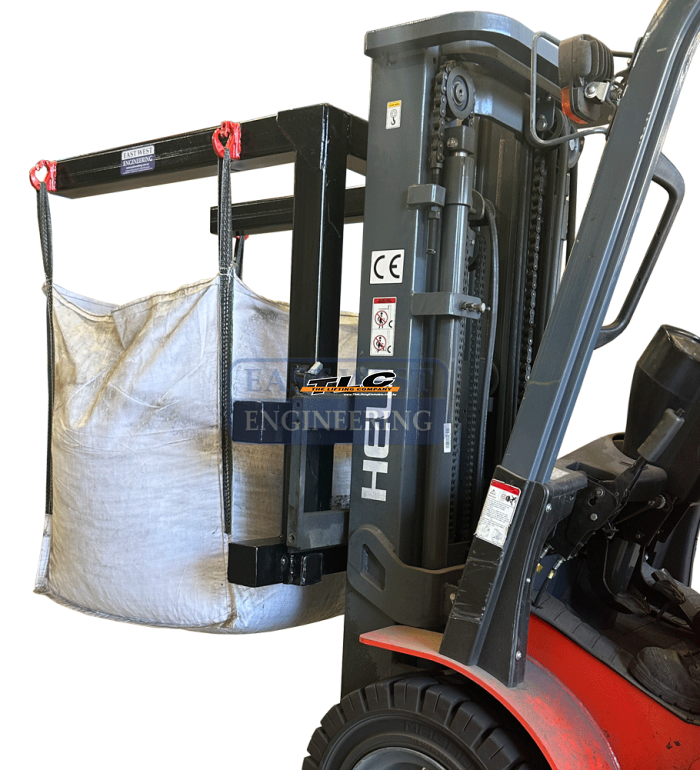

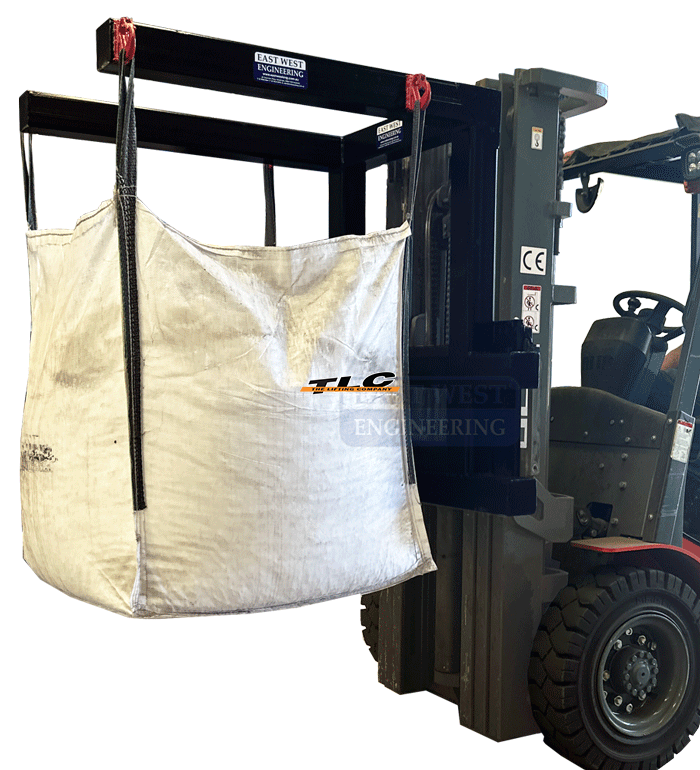

The FBN15-QR Bulk Bag Lifter is a carriage mount attachment for lifting, loading and transporting loaded bulk bags by forklift.
FEATURES:
• Allows bulk bags to be easily moved around the worksite or loaded into a container
• Bulk bag is secured via the four hooks on upper frame for safer handling
• Designed to maximise lift height
• Spring loaded locators and quick release bottom hooks are fitted to the lifting frame for fast connection to a fork carriage
• Enamel paint finish
FEATURES:
• Allows bulk bags to be easily moved around the worksite or loaded into a container
• Bulk bag is secured via the four hooks on upper frame for safer handling
• Designed to maximise lift height
• Spring loaded locators and quick release bottom hooks are fitted to the lifting frame for fast connection to a fork carriage
• Enamel paint finish
|
FBN15-QR2 |
FBN15-QR3 |
|
| Mounting Class | Class II | Class III | |
| Working Load Limit (WLL) | 1500kg | 1500kg | |
| Hook Centres | 880 / 800mm | 880 / 800mm | |
| Unit Weight | 126kg | 136kg |
